Hammond Manufacturing 1554JL2GY Polycarbonate Enclosure

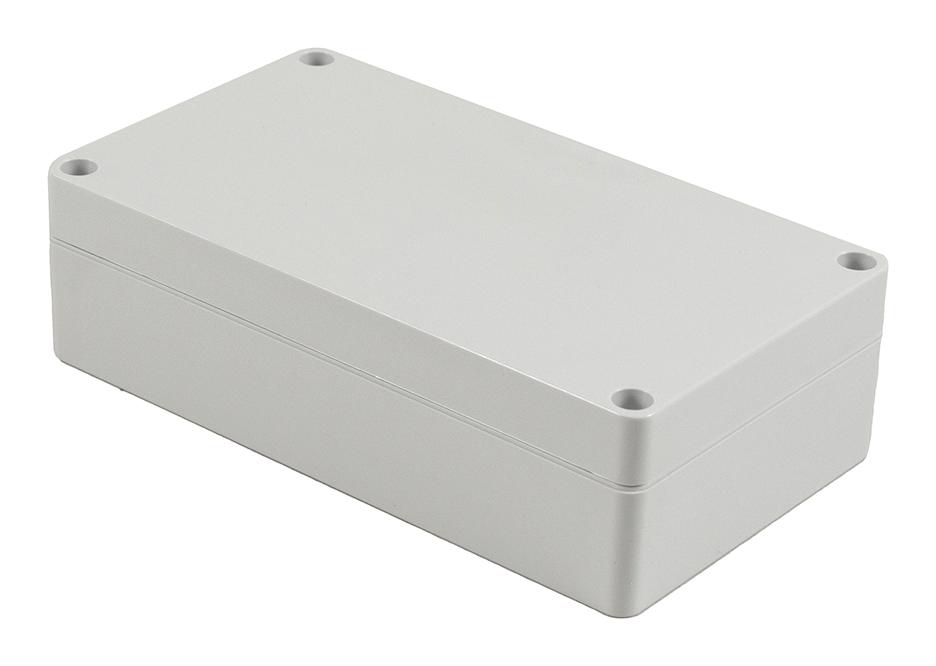

The 1554JL2GY enclosures are durable, watertight plastic cases designed for mounting printed circuit boards and DIN rail components. Made from light gray polycarbonate with UV stabilization, they meet NEMA Type 4X, 6, 12, 13, and IP68 ratings for outdoor durability, featuring gasketed, secure lids with corrosion-resistant hardware. These enclosures include molded internal DIN rail tabs, brass inserts, and screw-secured lids for easy access and reliable sealing. Suitable for industrial, electrical, and electronic projects requiring heightened protection and professional mounting options.
Hammond Manufacturing 1554JL2GY Polycarbonate Enclosure Specifications:
- Material: Polycarbonate, UL Listed, UV stabilized
- Color: Light gray (RAL 7035)
- Ratings: NEMA Type 4X, 6, 12, 13, IP68 (Polycarbonate); IP66 (ABS)
- Gasket: High-temperature, UL listed silicone, replaceable
- Lid Securing: M4 stainless steel screws, corrosion-resistant bushings
- Internal Mounting: DIN rail tabs, threaded brass inserts, P.C. card guides
- Hardware: Self-captivating screws, non-corrosive for harsh environments
- Dimensions: Vary by size, typical height 240-350 mm, width 260-630 mm, depth 160-470 mm
- Application: Suitable for electrical and control projects, outdoor and harsh environments
Buy the Buy Hammond Type 4X 6P Polycarbonate & ABS Enclosures 1554 Series Online
Enhance your electrical or electronic project with the durable Hammond 1554 series polycarbonate enclosure. Designed for outdoor use, it features a gasketed, secure lid, corrosion-resistant hardware, and internal DIN rail mounting tabs. These enclosures meet strict NEMA and IP ratings, making them ideal for harsh environments. Easy to assemble and disassemble, they provide reliable protection against dust, water, and oil contamination. Order online today to ensure a professional, weatherproof housing for your critical components.
Order your Hammond Series1554 polycarbonate enclosure today and ensure your electronic project is protected by a rugged, UL Listed housing with versatile mounting options.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1554JL2GY?
You can click on the BUY or RFQ button to purchase 1554JL2GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1554JL2GY?
You can download the 1554JL2GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1554JL2GY?
Hammond Manufacturing
