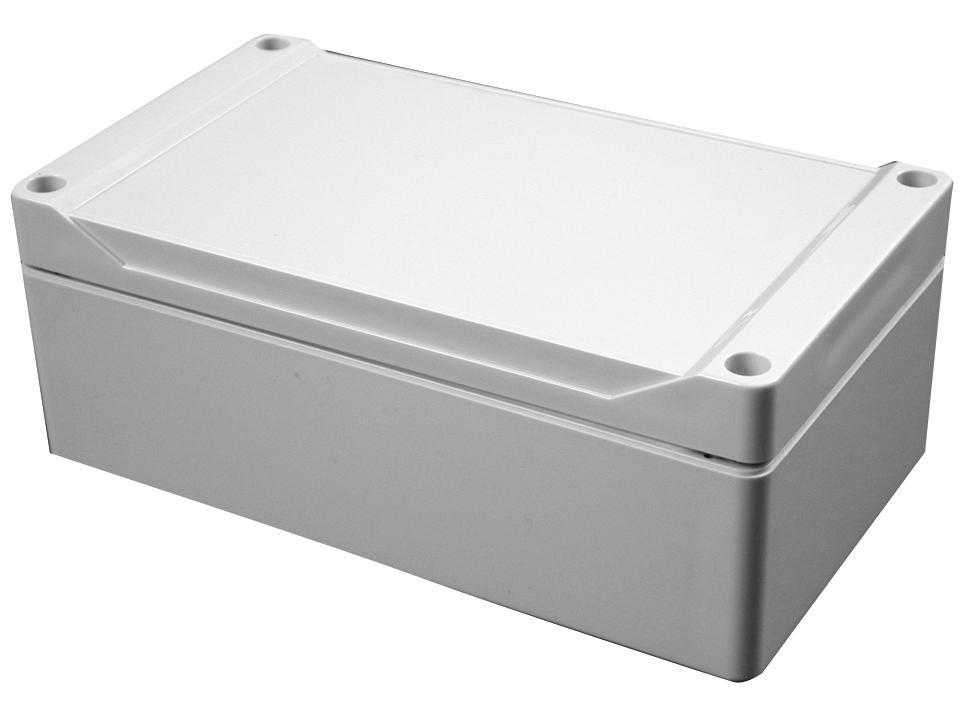

Hammond Manufacturing 1555DGY Polycarbonate Enclosure
The Hammond 1555DGY enclosure is a versatile, polycarbonate NEMA 4, 4X rated housing designed for industrial and electrical applications. It features durable construction with steel inner panels and brass inserts for secure assembly. The enclosure can be factory modified with milling, drilling, or printing, ensuring customization. Suitable for general purpose and UL-rated projects, it includes internal panels, gaskets, and screws. The polycarbonate version offers UL94 VO fire safety rating, ideal for demanding environments requiring robust, corrosion-resistant enclosures, all while providing protection against dust and water ingress.
Hammond Manufacturing 1555DGY Polycarbonate Enclosure Specifications:
- Enclosure Material: Polycarbonate (UL94 VO rated) and steel inner panels
- NEMA Rating: 4, 4X
- Dimensions: 120.00 mm (width) x 93.73 mm (height) x 111.00 mm (depth)
- Wall Thickness: Approximate 3 mm
- Inserts: Brass inserts (4x)
- Internal Panel Size: 839.0 mm²
- Box Inside Dimensions: 240.0 mm x 140.0 mm x 70.0 mm
- Lid Inside Dimensions: 114.00 mm x 26.80 mm
- Gauge: Factory modified options available
- Screw Type: P.G. Board machine screws (M3 x 8mm) and self-tapping screws (6 x 1/4")
- Screw Torque: 2.5 lb-in (30 cN-m)
- UL Certification: Polycarbonate version UL94 VO rated, General purpose ABS version UL1004-HB
- Accessories: Gaskets, cover screws, panel mounting hardware included
Buy the Hammond Series 1555D Polycarbonate Enclosure: 1555DGY
Enhance your electrical project with the Hammond Polycarbonate Enclosure. Engineered for robustness, it offers UL-rated safety, water and dust resistance, and customization options including milling and printing. Ideal for industrial or sensitive environments, this NEMA 4, 4X rated housing features steel inner panels, brass inserts, and secure screw assembly. Purchase online today and benefit from quick delivery, factory modifications, and a product designed for long-lasting performance and safety in demanding applications. Order now for reliable protection.
Get Hammond 1555DGY today—built for durability, custom modifications, and reliable electrical protection.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1555DGY?
You can click on the BUY or RFQ button to purchase 1555DGY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1555DGY?
You can download the 1555DGY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1555DGY?
Hammond Manufacturing
