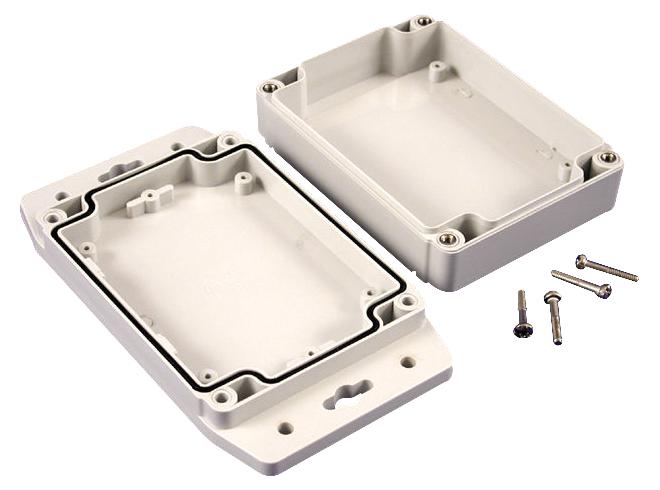

Hammond Manufacturing 1555NF42GY industrial plastic enclosure
The 1555NF42GY is a versatile plastic enclosure designed for industrial and electronic applications. Made from UL 508 approved polycarbonate or general purpose ABS, it offers excellent durability with UL94 V-0 and UL94 HB fire ratings. The enclosure features a secure lid with silicone gasket, multiple mounting options, and precise dimensions including inlay length, width, and depth. Its design allows for factory modifications like milling, drilling, and printing, ensuring customization for specific project requirements. Suitable for control panels, instrumentation, and electronic assemblies, it provides robust protection with easy assembly features and high-grade material standards.
Hammond Manufacturing 1555NF42GY industrial plastic enclosure Specifications:
- Material: Polycarbonate or ABS
- UL Rating: UL 508 (Polycarbonate), UL94 V-0 (Polycarbonate), UL94 HB (ABS)
- Dimensions: Inlay length 45-47 mm, width around 42-42.5 mm, depth approximately 19.6 mm
- Outer Dimensions: Length 160.79 mm, width 88.84 mm, height 60.50 mm
- Wall Thickness: 2.25 mm
- Inner Box Depth: 42 mm, inner Lid Depth 42.5 mm
- Enclosure Features: Factory modifications available (milling, drilling, printing)
- Gasket: Preformed silicone gasket included
- Screw Torque: Recommended cover screw torque 2.5 Ibf-in (30 cN-m)
- Certifications: UL 508, UL94 V-0, UL94 HB, suitable for industrial applications
- Construction: Flanged lid with inside view, optional factory modifications for customization
Buy the Buy Hammond 1555NF42GY Part Number 1555NF42GY Online
Discover the high-quality Hammond 1555NF42GY enclosure, perfect for industrial controls, electronics, and instrumentation. Crafted from UL-approved polycarbonate or ABS, it offers durability, customization, and superior protection. Factory modifications like milling, drilling, and printing are available for tailored solutions. With precise dimensions and a silicone gasket, it guarantees secure assembly and environmental sealing. Suitable for control panels and electronic assemblies, this enclosure combines robust construction with ease of installation. Purchase online today to ensure your projects benefit from dependable, high-grade enclosure solutions.
Order your Hammond Series1555NF42GY enclosure today and ensure your industrial control and electronic projects are protected with high-quality, reliable enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1555NF42GY?
You can click on the BUY or RFQ button to purchase 1555NF42GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1555NF42GY?
You can download the 1555NF42GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1555NF42GY?
Hammond Manufacturing
