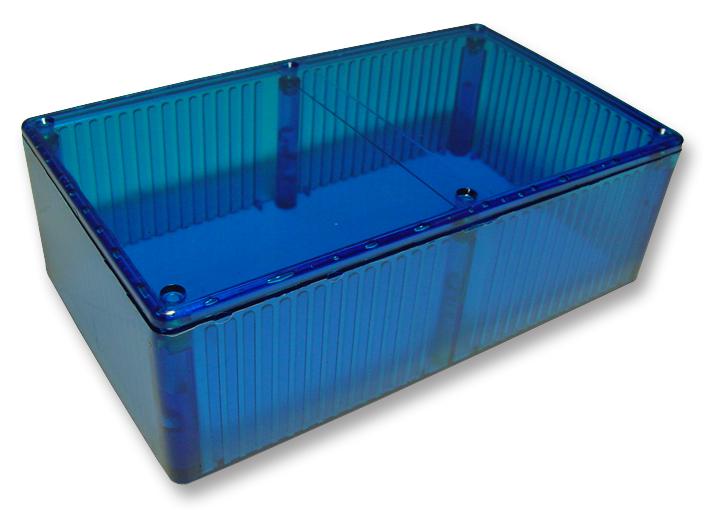

Hammond Manufacturing 1591ETBU Translucent Polycarbonate Enclosure
The 1591 Series translucent polycarbonate enclosures are molded from flame-retardant ice blue or infrared red polycarbonate, ideal for electronic instrument cases. They feature protection against dust and water with IP54 rating, flat lid secured by M3 screws, integral card guides for 1.5 mm P.C. cards, and a durable construction suitable for modern style displays. Accessories include PC board card adaptors, flange kits for mounting, and nickel-plated machine screws. Perfect for mounting printed circuit boards in visible enclosures with side or rear access options.
Hammond Manufacturing 1591ETBU Translucent Polycarbonate Enclosure Specifications:
- Material: Flame retardant translucent polycarbonate (UL 94V-0)
- Color options: Ice blue or infrared translucent red
- Protection: IP54 rated against dust and splashing water
- Lid securing: M3 x 10 mm Philips screws threaded into brass bushings
- Suitable for mounting printed circuit boards with integral card guides for 1.5 mm PC cards
- Wall thickness: Approximate 0.06 inches (1.5 mm)
- Assembled height: Dimension 'C' plus 0.16 inches (4.0 mm)
- Dimensions vary per model, e.g., 3.9 inches to 7.5 inches length, with corresponding width and height specifications
- Includes accessories such as flange kits and nylon screws for mounting
Buy the Hammond Series 1591 Translucent Polycarbonate Enclosure: 1591ETBU
Purchase the Hammond Series 1591 translucent polycarbonate enclosure now and ensure your electronic projects are protected with durable, flame-retardant, IP54-rated enclosures. These easy-to-mount cases are perfect for visible electronic instrument displays and PCB mounting, featuring integrated card guides, secure lid fastening, and robust construction from UL 94V-0 rated polycarbonate. Choose from ice blue or infrared red options and enhance your device safety and style. Buy online today for reliable, high-quality enclosures that meet industrial standards.
Order your Hammond Series 1591 translucent polycarbonate enclosure today and protect your electronic components with high-quality, flame-retardant reliability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1591ETBU?
You can click on the BUY or RFQ button to purchase 1591ETBU from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1591ETBU?
You can download the 1591ETBU datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1591ETBU?
Hammond Manufacturing
