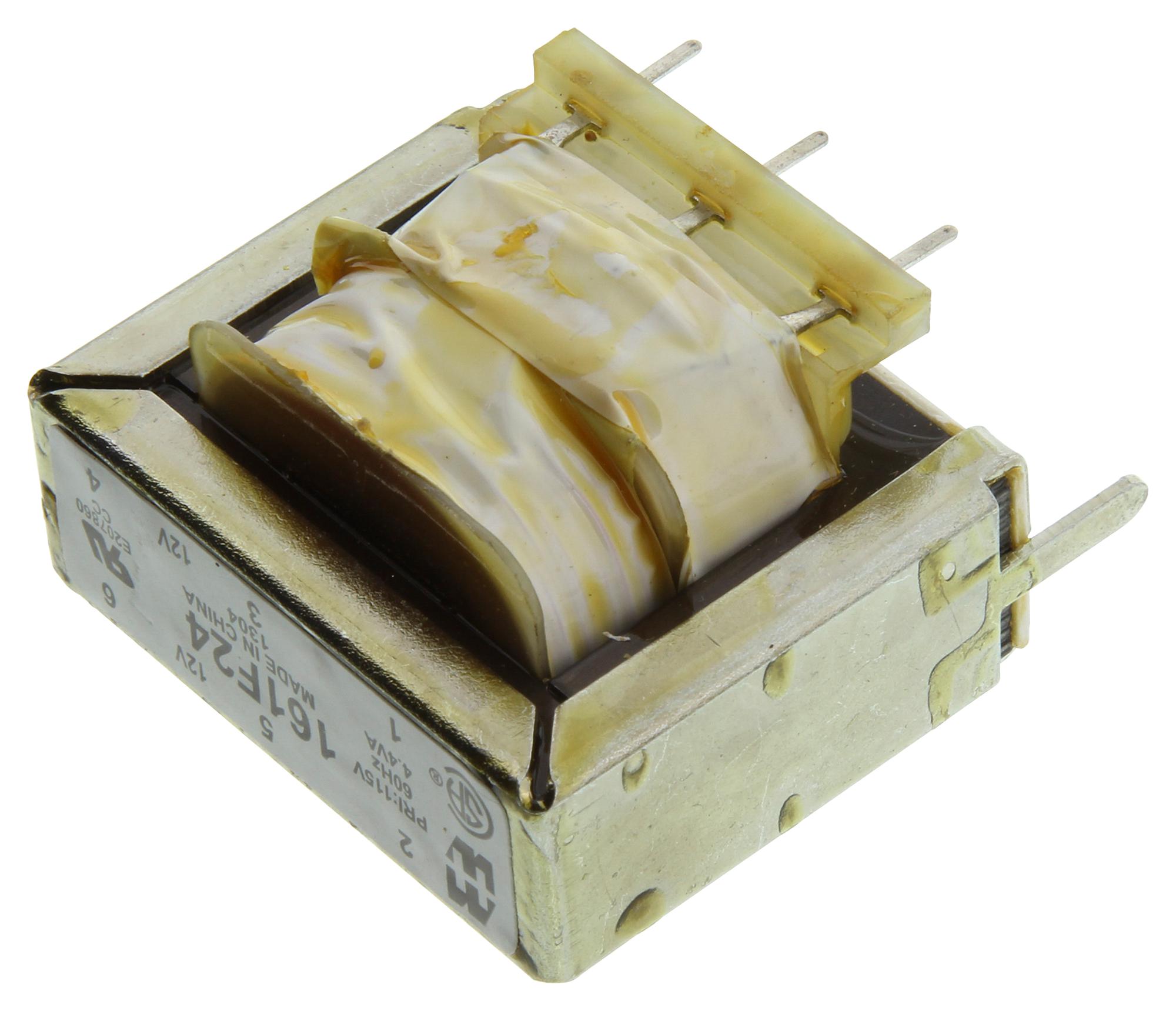

Hammond Manufacturing 161F24 Low Voltage PCB Mount Transformer
The 161F24 is a 4.4VA low-voltage PCB-mount transformer designed for industrial and power management applications. It features a 24V center-tapped secondary rated at 180mA and a 12V secondary rated at 360mA, operating at 115V primary and 60Hz. The transformer employs a vertical split bobbin design with non-concentrically wound dual secondary windings, reducing primary-to-secondary coupling and eliminating the need for an electrostatic shield. It has a high insulation withstand voltage of 2000Vrms and insulation class of 130°C, with CSA and UL certifications ensuring safety and reliability.
Hammond Manufacturing 161F24 Low Voltage PCB Mount Transformer Specifications:
- Power Rating: 4.4VA
- Primary Voltage: 115V, 60Hz
- Secondary Voltages: 24VCT @ 180mA and 12V @ 360mA
- Insulation Strength: Hi-pot of 2000Vrms
- Insulation Class: B (130°C)
- Mounting Type: Vertical PCB mount
- Design: Split bobbin with non-concentric secondary windings
- Construction: Low primary to secondary coupling, no electrostatic shield required
- Dimensions: Length varies, typical size for this series approximately 1.63 x 1.25 inches
- Certifications: CSA certified, UL recognized
Buy the Hammond Series Low Voltage PCB Mount Transformer: 161F24
Purchase the Hammond 161F24 low-voltage PCB mount transformer online today and ensure your power supply needs are met with high insulation standards and proven reliability. Perfect for industrial automation, control systems, and power management, this transformer features dual secondary windings with a power rating of 4.4VA. Its vertical mount design allows easy installation on circuit boards, and its high insulation withstand voltage of 2000Vrms ensures safety. Order now for fast delivery and exceptional performance.
Buy Hammond 161F24 low-voltage PCB mounting transformer now and experience reliable power conversion for industrial automation and control applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 161F24?
You can click on the BUY or RFQ button to purchase 161F24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 161F24?
You can download the 161F24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 161F24?
Hammond Manufacturing
