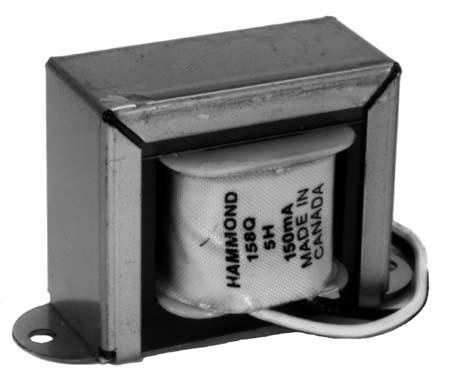

Hammond Manufacturing 154B DC Reactor
The 153-159 Series DC Reactors and filter chokes from Hammond Manufacturing are ideal for low to medium current high voltage power supply filtering. Constructed with vacuum-impregnated polyurethane varnish for durability and quiet operation, each unit undergoes Hipot testing at 1500 VAC. Their open bracket channel mount design allows easy installation, with inductances measured at rated DC currents and tolerance of 15%. Suitable for industrial applications, these reactors offer reliable performance and voltage filtering with a range of inductance and resistance options to meet diverse needs.
Hammond Manufacturing 154B DC Reactor Specifications:
- Inductance range: from 0.38 mH to 150 H with tolerance ±15%
- Resistance varies from 0.07 Ohms to 3700 Ohms depending on model
- Max operating voltage: 300 V DC to 500 V DC
- Maximum DC current: from 20 mA to 10 A depending on model
- Dimensions vary by model, mounting hole diameters from 0.12 to 0.19 inches
- Mechanical mounting: open bracket channel mount with lead length of at least 5 inches
- Units are vacuum impregnated with polyurethane varnish for long life and quiet operation
- Visually measured inductance at rated DC current, with models designed for high voltage filtering
- Manufactured to stringent quality standards, all units are Hipot tested at 1,500 VAC
- A broad selection of inductance and resistance values available for different industrial filtering applications
Buy the Hammond 154B – Reliable Power Supply Reactors for Industrial Applications
Enhance your power filtering solutions with Hammond DC Reactors from the 153-159 Series. Designed for durability and precise inductance, these reactors provide reliable high voltage filtering suited for industrial environments. Vacuum-impregnated for long life, each unit undergoes rigorous testing to ensure quality. Easy to install with open bracket mounting, they deliver optimal performance across a wide range of inductance and resistance values. Purchase online today to secure a dependable component that improves your power supply efficiency and reliability.
Order your Hammond Series154B DC reactor today and ensure robust high voltage filtering for your industrial projects with dependable performance.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 154B?
You can click on the BUY or RFQ button to purchase 154B from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 154B?
You can download the 154B datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 154B?
Hammond Manufacturing
