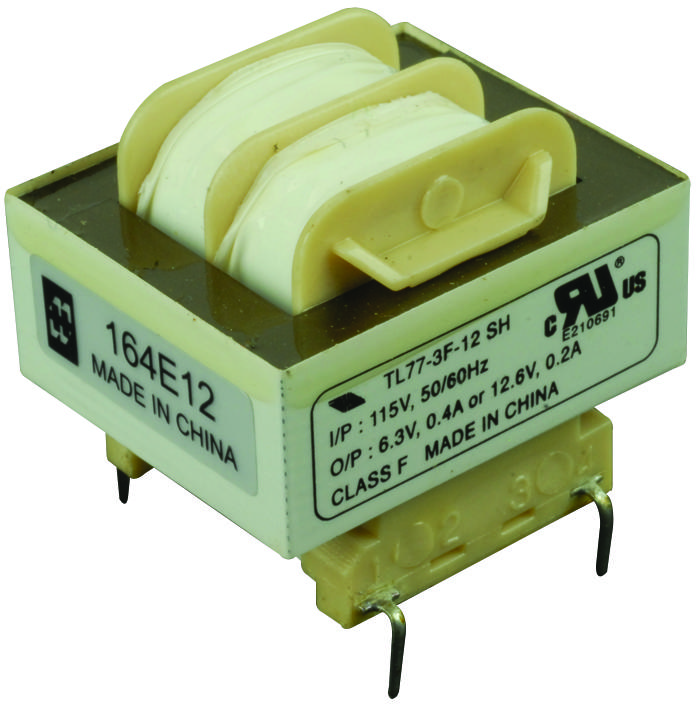

Hammond Manufacturing 164E12 Power Transformer
This high-quality power transformer is designed for power management and industrial applications, featuring dual winding secondary, multiple output voltages, and robust insulation. It operates on 50/60 Hz frequency, with primary options for single or dual voltage inputs. Its low profile, split bobbin design allows easy PCB mounting, with sizes ranging from 1.1 to 36 VA. Built to UL and CSA standards, it offers 2,500V RMS hipot insulation, class B insulation rated at 130°C, and durable construction for reliable performance in demanding environments.
Hammond Manufacturing 164E12 Power Transformer Specifications:
- Operating Frequency: 50/60 Hz
- Output Voltages: 5V to 120VAC, multiple options
- Power Sizes: 1.1 to 36 VA
- Primary Voltage: Single 115V or dual 115/230V options
- Insulation: Class B rated at 130°C, 2,500V RMS hipot
- Construction: Low profile, split bobbin design, dual winding secondary, industry-standard pin spacing
- Mounting: No hardware on smaller sizes, two or four-hole mounting on larger sizes
- Standards: UL and CSA recognized
- Dimensions: Vary by size, approximately 1.38 to 2.63 inches in length, height up to 1.56 inches
- Weight: Ranges from 0.17 to 1.1 pounds depending on size
Buy the Hammond Series 162 Low Voltage PCB Mount Power Transformer: 164E12
Procure your Hammond Series 162 power transformer online today to ensure reliable power management in your industrial applications. This transformer features dual secondary windings, multiple output voltages, UL recognition, and high insulation standards, making it ideal for demanding environments. Its low profile design with industry-standard pin spacing simplifies PCB mounting. Ranging from 1.1 to 36 VA, it provides excellent performance with 2,500V RMS hipot insulation and class B temperature rating. Invest now to benefit from durable, high-quality power solutions for your projects.
Order your Hammond Series 162 164E12 power transformer today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 164E12?
You can click on the BUY or RFQ button to purchase 164E12 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 164E12?
You can download the 164E12 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 164E12?
Hammond Manufacturing
