Hammond Manufacturing 176A Voltage Step-Up Transformer

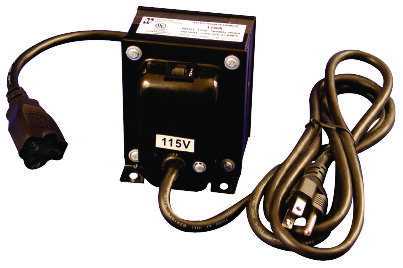

The 176A step-up auto transformer is an indoor-use device enabling voltage conversion from 115VAC to 230VAC. Featuring a single winding for efficient voltage increase without providing isolation, it suits applications where equipment is already isolated. The transformer operates with 50/60Hz frequency, equipped with a circuit breaker, and is tested to withstand a 2kVRMS hi-pot test for safety. The input is a grounded 3-wire plug connected via a 5-foot cord, while the output is a NEMA 6-15R receptacle on a short pig tail cord. This reliable transformer is UL and C-UL listed, designed for industrial and testing environments requiring a compact and robust voltage step-up solution.
Hammond Manufacturing 176A Voltage Step-Up Transformer Specifications:
- Capacity: 120V 3.16A
- Overall Dimensions: A: 3.16, B: 4.25, C: 381 mm, D: 250 mm
- Input: 3-wire grounded plug, 5-foot cord, North American NEMA 5-15P
- Output: NEMA 6-15R receptacle with 1-foot pig tail cord
- Protection: Circuit breaker protected
- Electrical Safety: Hi-pot tested to 2 kVRMS
- Frequency: Supports 50/60Hz worldwide operation
- Material: Indoor use only, robust construction
- Certifications: UL and C-UL listed, File #E211544
Buy the Buy Hammond 176A Part Number 176A Online
Order the Hammond 176A voltage step-up transformer online and ensure safe, efficient power conversion from 115VAC to 230VAC for your industrial, testing, or lab applications. This robust indoor transformer is UL and C-UL listed, offers a 50/60Hz operation, and includes a circuit breaker for added safety. Its compact design features a 5-foot cord with a grounded North American plug and a NEMA 6-15R receptacle on a short pig tail cord. Perfect for reliable, economical power solutions in demanding environments, it guarantees performance and safety in one durable, easy-to-use package.
Get Hammond 176A today—built for reliable voltage step-up in industrial environments with circuit protection and UL certification.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 176A?
You can click on the BUY or RFQ button to purchase 176A from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 176A?
You can download the 176A datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 176A?
Hammond Manufacturing
