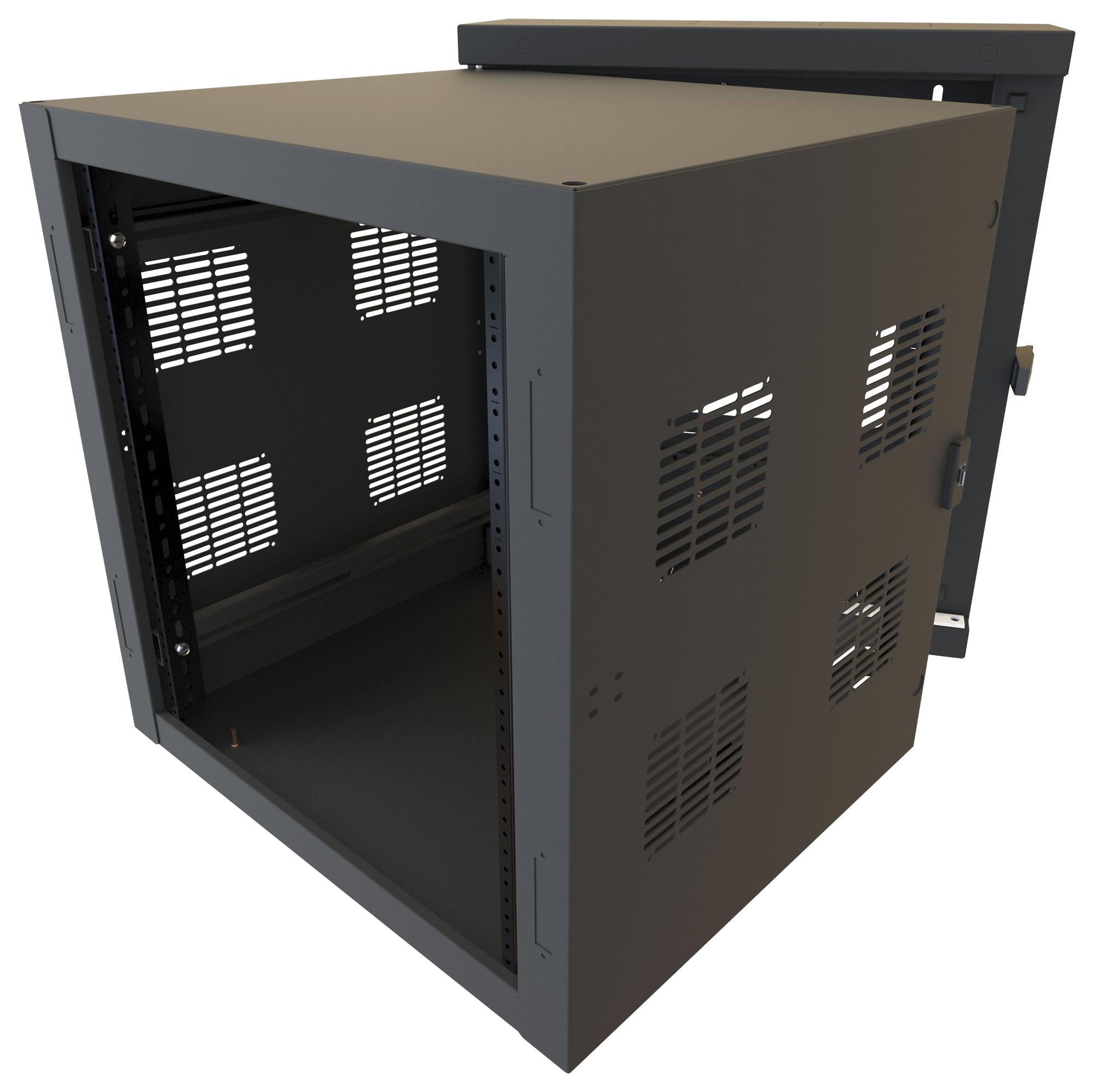

Hammond Manufacturing HWCVD3027UBK Wall Mount Rack Cabinet
The Hammond Swing-Out Sectional Wall Mount Rack Cabinet offers a sturdy, UL-rated solution for professional data and equipment storage. Crafted from heavy-duty steel with a sand-textured black powder finish, it supports up to 300 lbs. The cabinet features adjustable depth mounting rails, multiple knockout options for conduit and cables, and generous cable management lances. Available in various heights, widths, and depths, it includes lockable doors, ventilation options, and mounting accessories, making installation quick and efficient for technical environments requiring reliable, versatile enclosures.
Hammond Manufacturing HWCVD3027UBK Wall Mount Rack Cabinet Specifications:
- Material: Steel with sand-textured black powder coat
- Gauge: 16-gauge center section, 14-gauge rear section, doors
- Load Capacity: UL 2416 rated for up to 300 lbs
- Dimensions: Height 54.06 inches, Width 24.68 inches, Depth 26.78 inches
- Mounting Rails: ELIA compliant, adjustable depth, includes tapped (10-32) rails
- Knockouts: 2.50, 2.00, 3.00, 2.00, 1.38, 1.12 inch conduits, fan knockouts
- Cable Management: Rear lances and mounting rails with drill-less options
- Grounding: Lugs on top and bottom, with optional grounding kit
- Finish: Rugged, fingerprint-resistant powder coating
- Compliance: TAA, RoHS, UL, CSA, ETL
- Includes: Tapped mounting rails, mounting hardware, optional lock doors
Buy the Hammond Series HWC Swing-Out Sectional Wall Mount Rack: HWCVD3027UBK
Purchase the Hammond Wall Mount Rack Cabinet online today and elevate your professional equipment organization. Designed with adjustable rails, lockable doors, and extensive cable management, this durable cabinet supports up to 300 lbs. It features easy installation with minimal effort, versatile configuration options, and a robust powder-coated finish for long-lasting protection. Ideal for data centers, control rooms, or industrial environments, secure your equipment efficiently and ensure optimal airflow and cable access. Order now to benefit from quick shipping and premium quality craftsmanship.
Get Hammond Series HWCVD3027UBK today—built for heavy-duty, versatile equipment management with quick installation and reliable performance.
Frequently Asked Questions
Where can I buy Hammond Manufacturing HWCVD3027UBK?
You can click on the BUY or RFQ button to purchase HWCVD3027UBK from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part HWCVD3027UBK?
You can download the HWCVD3027UBK datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of HWCVD3027UBK?
Hammond Manufacturing
