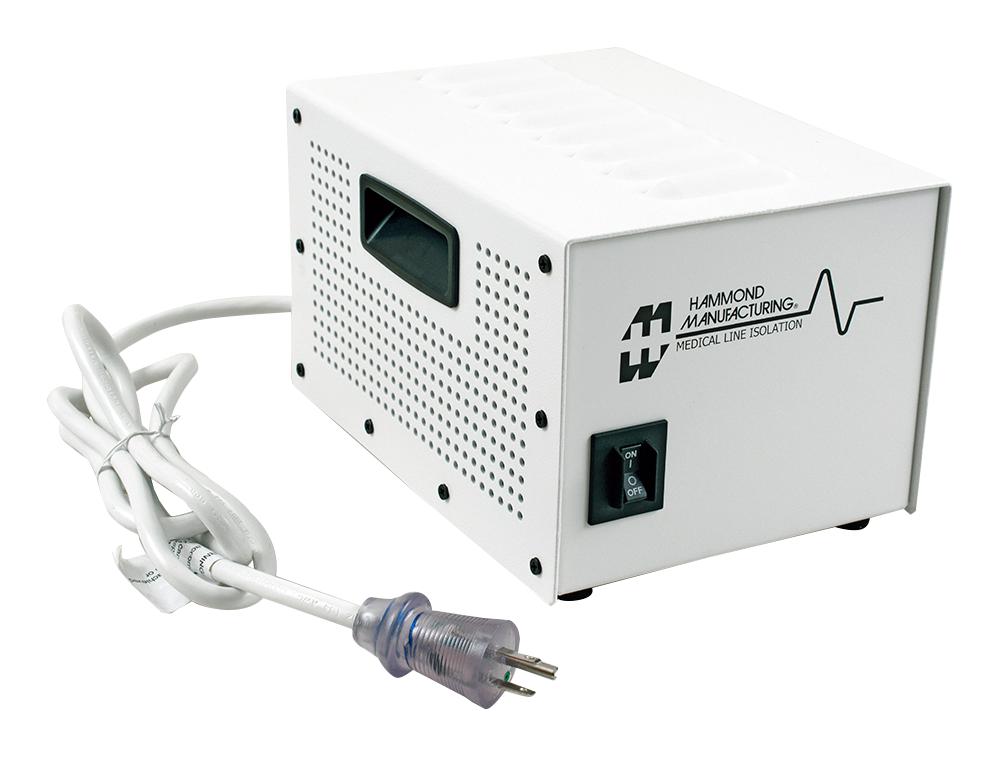

Hammond Manufacturing 178MG1000 Medical Line Isolation Transformer
The 178MG1000 is a medical-grade plug-in line isolation transformer providing 1000VA capacity. Designed for non-patient indoor applications, it offers complete line isolation, noise filtering, and reduced leakage currents below UL60601-1 standards. It features a vented steel housing, hospital-grade grounded plugs, and duplex receptacles. Available in various configurations, this transformer ensures safety with circuit breakers, thermal cutouts, and compliance with UL and CSA standards. Ideal for protecting sensitive electronic equipment in medical or sensitive environments, it ensures reliable operation with high efficiency and safety features.
Hammond Manufacturing 178MG1000 Medical Line Isolation Transformer Specifications:
- Capacity: 1000VA
- Input Voltage: 120VAC
- Output Voltage: 120VAC
- Input Current: 8.67A
- Output Current: 8.33A
- Leakage Current: <100 microamps
- Efficiency: 95% (minimum)
- Housing: Vented 14 gauge steel with powder paint
- Plug Type: Hospital-grade 5-15P (input), Duplex output receptacles
- Cord Length: 6 feet
- Protection: On-off switch, circuit breaker, thermal cutout
- Standards: UL 60601-1, CSA C22.2 No. 601.1-M90
- Application: Non-patient, indoor, sensitive electronic equipment
- Features: Line isolation, noise filtering, leakage current reduction, safety features
Buy the Buy Hammond Medical Grade Line Isolation Transformer Part Number 178MG1000 Online
Secure your sensitive electronic equipment with the Hammond 178MG1000 medical-grade line isolation transformer. Featuring 1000VA capacity, UL and CSA certification, and advanced noise filtering, it's perfect for non-patient indoor applications. The rugged vented steel housing, hospital-grade plugs, and duplex receptacles ensure safety and durability. Equipped with circuit breakers and thermal cutouts, this transformer offers reliable operation. Purchase online today to ensure high-quality, compliant power protection for your medical or sensitive electronic devices with our trusted, easy-to-order solution.
Order your Hammond Series 178MG1000 medical-grade line isolation transformer today and safeguard your sensitive electronic equipment with our reliable, noise-filtered solution.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 178MG1000?
You can click on the BUY or RFQ button to purchase 178MG1000 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 178MG1000?
You can download the 178MG1000 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 178MG1000?
Hammond Manufacturing
