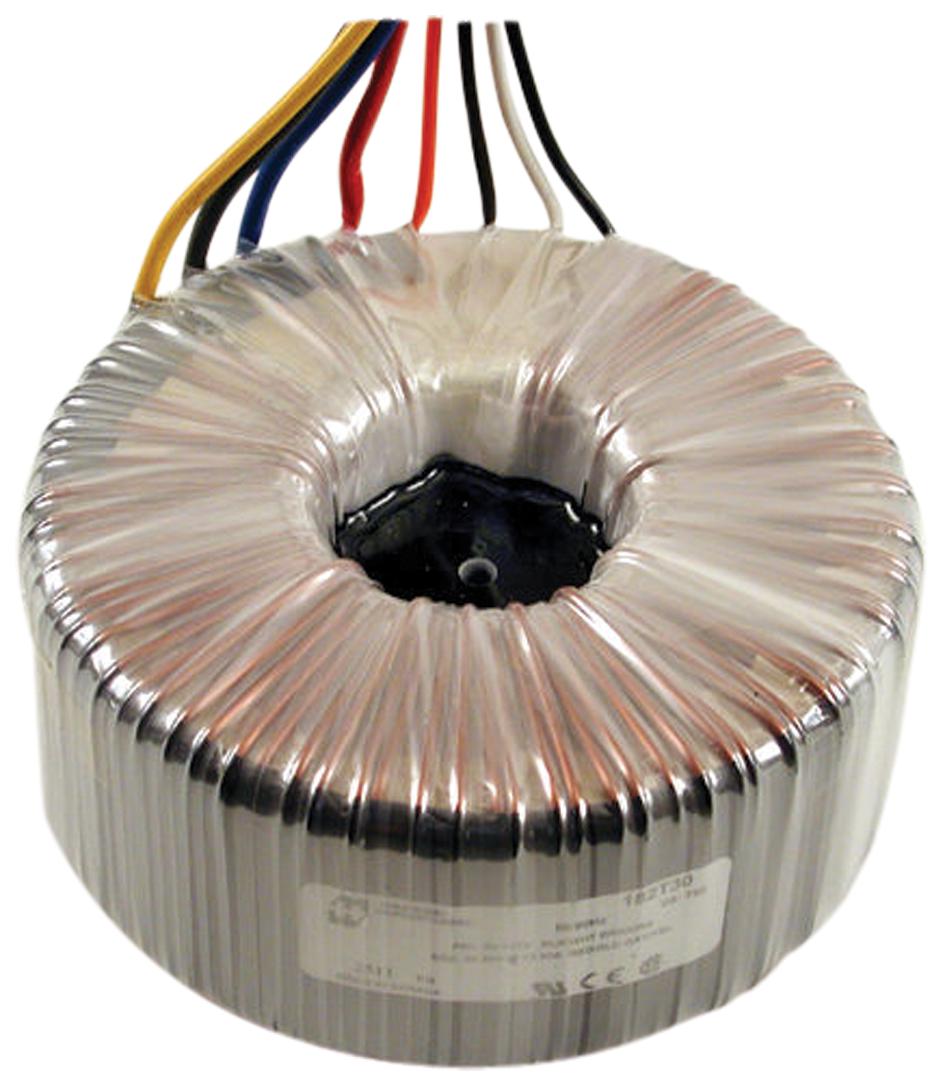

Hammond Manufacturing 182G117 Toroidal Power Transformer
The 182G117 is a high-efficiency toroidal power transformer featuring dual primary and secondary windings. It is designed to be low profile, lightweight, and capable of cool operation. The transformer supports dual primary voltages of 117/234VAC at 50/60Hz and is constructed to ensure all windings are engaged. It includes a center-mounted single hole for mounting, with at least 8 inches of flexible leads for easy installation. The unit has undergone hipot testing at 4000 Vrms between primary and secondary and is certified by CSA (C22.2 #66, File #209651), UL (UL506, File #E207860), and CE (IEC950). Ideal for industrial applications, it comes with a rubber insulating pad, a metal centering washer, mounting hardware, and a 3-inch bolt.
Hammond Manufacturing 182G117 Toroidal Power Transformer Specifications:
- Winding Type: Dual primary, dual secondary
- Primary Voltage: 117/234 VAC at 50/60Hz
- Power Rating: 15 VA
- Core Type: Toroidal, high efficiency
- Construction: Low profile, lightweight, cool running
- Mounting: Center single hole with mounting hardware and rubber insulating pad
- Lead Length: Minimum 8 inches of flexible leads
- Test Voltage: Hipot test of 4,000V RMS between primary & secondary
- Certifications: CSA certified to C22.2 #66, UL recognized to UL506, CE certified to IEC950
- Dimensions: Diameter approximately 2.70 inches, height 1.25 inches
- Material: Steel top cover, rubber insulating pads included
- Mounting Bolt Size: 8-32 thread, 3 inches length
- Operating Temperature: Designed for cool running
- Weight: 0.76 pounds
Buy the Buy Hammond Toroidal Power Transformer Part Number 182G117 Online
Purchase the Hammond 182G117 toroidal power transformer online today for efficient, reliable power conversion. This high-quality, compact transformer features dual primary and secondary windings, supporting 117/234VAC at 50/60Hz. It's designed to be lightweight, cool running, and easy to install with flexible leads and sturdy mounting hardware. Certified by CSA, UL, and CE, it ensures safety and compliance. Perfect for industrial, automation, and control systems, this transformer offers long-lasting durability. Secure yours now for trouble-free operation and seamless integration into your electrical setup.
Get Hammond 182G117 today—built for high efficiency and reliable performance in industrial applications.
