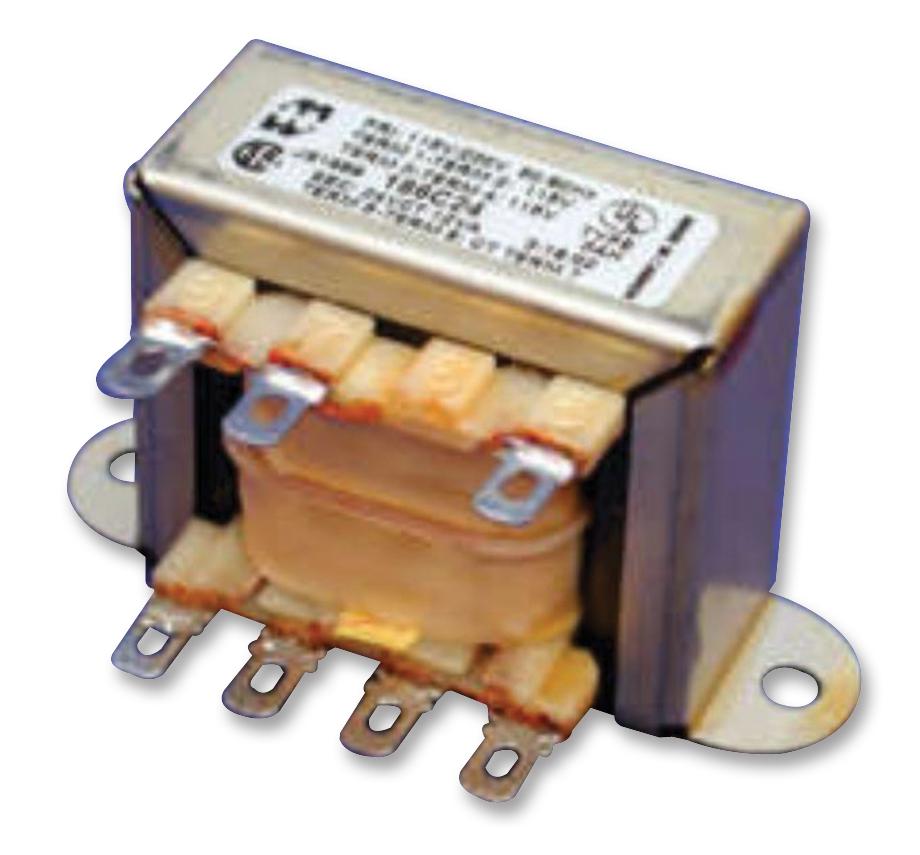

Hammond Manufacturing 186F24 low voltage transformer

The 186F24 is a 96VA low-voltage isolation transformer with a 24VAC center-tapped secondary rated at 4A (RMS). It features dual primary voltages of 115/230VAC and operates at 50/60Hz. The transformer's split bobbin construction eliminates the need for an electrostatic shield. It is tested for dielectric strength at 2000Vrms and has a channel frame, open-style, chassis-mount design suitable for various power management and industrial applications. The unit incorporates 130°C Class-B insulation and is designed to meet Class-A temperature rise standards.

View 186F24Datasheet [pdf]

Buy the Buy Hammond Low Voltage Transformer Part Number 186F24 Online

Discover the Hammond Series186F24 low voltage transformer, delivering 96VA with a 24VAC secondary rated at 4A RMS. Designed for industrial and power management applications, it features dual primary voltages of 115VAC and 230VAC, and operates efficiently at 50/60Hz. Its split bobbin construction reduces shielding needs, while tested dielectric strength ensures safety. The open chassis mount design, combined with Class B insulation at 130°C, offers durability and compliance with industry standards, making it a dependable and versatile electrical component for various projects.

Order your Hammond Series186F24 96VA low voltage transformer today and enhance your power management with reliable industrial-grade performance.
