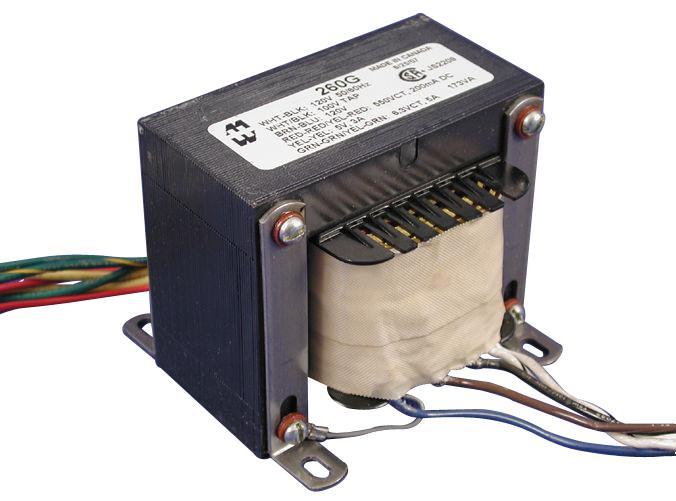

Hammond Manufacturing 260G Isolation Transformer
The 260G is a 175VA isolation transformer with a universal primary featuring taps for 100V, 120V, 220V, and 240V at 50/60Hz. Ideal for pre-amplifiers, low-power amplifiers, and testing equipment, it provides both plate and filament isolation. Equipped with a Faraday shield between primary and secondary windings, it minimizes electromagnetic interference. The transformer can be mounted using a two-hole channel bracket or a four-hole open frame chassis mount, with minimum lead lengths of 5 inches. Designed for power management, it requires both primary windings energized for maximum efficiency and proper grounding of the Faraday shield.
Hammond Manufacturing 260G Isolation Transformer Specifications:
- Power Rating: 175VA
- Primary Voltage: 100V, 120V, 220V, 240V (taps included)
- Frequency: 50/60Hz
- Secondary Voltages: 5V@2A, 6.3V@5A, 550V C.T. @ 230mA, 450VC.T. @115mA, 500V C.T. @85mA, 400VC.T. @40mA, etc.
- Mounting: Two-hole (.187 dia.) channel bracket or four-hole chassis mount
- Lead Length: Minimum 5 inches
- Features: Faraday electrostatic shield reduces high-frequency capacitive coupling
- Construction: Open frame, power management design, suitable for industrial applications
- Operation: Both primary windings energized for maximum efficiency, shield grounded
Buy the Hammond Series 260 Isolation Transformer: 260G
Purchase the Hammond 260G isolation transformer online today to ensure reliable power isolation and reduced electromagnetic interference for your audio, test, or industrial equipment. Engineered with a universal primary for flexible voltage options, it features a Faraday shield to minimize capacitive coupling. The transformer offers versatile mounting options, including a two-hole channel bracket or four-hole chassis mount, with a minimum lead length of 5 inches for easy installation. Designed for maximum efficiency, the 260G is ideal for power management, testing, and audio equipment requiring dependable performance and high safety standards.
Get Hammond 260G today—built for power management, electromagnetic interference reduction, and versatile mounting for industrial and audio applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 260G?
You can click on the BUY or RFQ button to purchase 260G from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 260G?
You can download the 260G datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 260G?
Hammond Manufacturing
