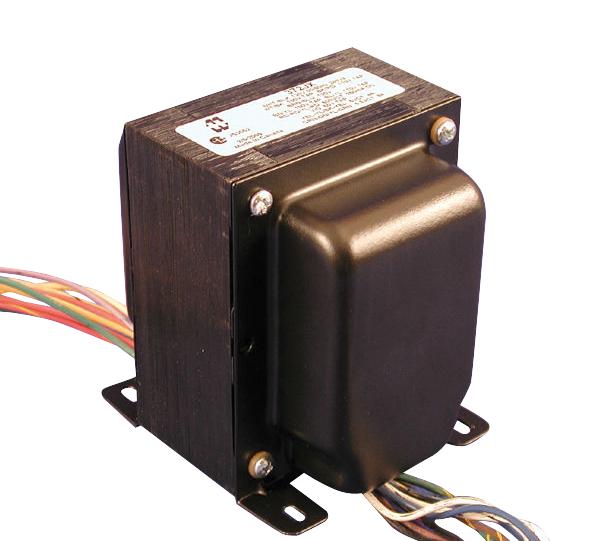

Hammond Manufacturing 302AX High Voltage Transformer
This high voltage and filament transformer from the 300 Series by Hammond Manufacturing provides reliable power output for tube amplification and audio applications. It features multi-range primary voltage operation from 100V to 240V, with a high current capacity up to 600V secondary voltage and 12A current, making it suitable for high-power audio equipment. The transformer includes electrostatic shielding to reduce capacitive coupling, concentric wound windings for minimal noise, and options for vertical or horizontal mounting. It is CSA certified for safety and designed for long-lasting, high-performance use in demanding electronic environments.
Hammond Manufacturing 302AX High Voltage Transformer Specifications:
- Primary Voltage Range: 100V-240VAC, 50/60Hz
- Secondary Voltage: Up to 600V C.T. @ 690ma
- Power Rating: 39 VA to 940 VA
- High Voltage Secondary: Up to 850V C.T.
- Filament Voltage: 5.0V to 6.3V at currents up to 12A
- Construction: Concentric wound for low stray field and noise
- Shielding: Electrostatic copper shield grounded to end bell
- Mounting Options: Horizontal ('Z') and vertical ('X') mounting styles
- Testing: Highpot tested to 2,000 VAC
- Certifications: CSA certified
- Finish: Black powder coat for durability
- Features: Bias tap option, low noise design, suitable for high-power audio applications
Buy the Hammond Series 300 High Voltage & Filament Transformer: 302AX
Order Hammond 302AX high voltage and filament transformer online today for your tube audio or electronic projects. Engineered for precision, it offers multiple secondary voltages up to 600V, a power rating between 39 VA and 940 VA, and robust construction with electrostatic shielding to minimize noise. Suitable for high-power tube amplifiers, with vertical and horizontal mounting options, CSA certification, and long-lasting performance. Perfect for professional audio, industrial, or custom electronic applications where dependable high voltage power is essential.
Get Hammond 302AX today—built for high-power audio applications with reliable high voltage and long-lasting durability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 302AX?
You can click on the BUY or RFQ button to purchase 302AX from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 302AX?
You can download the 302AX datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 302AX?
Hammond Manufacturing
