Hammond Manufacturing ADSV2536BK Adjustable Shelf

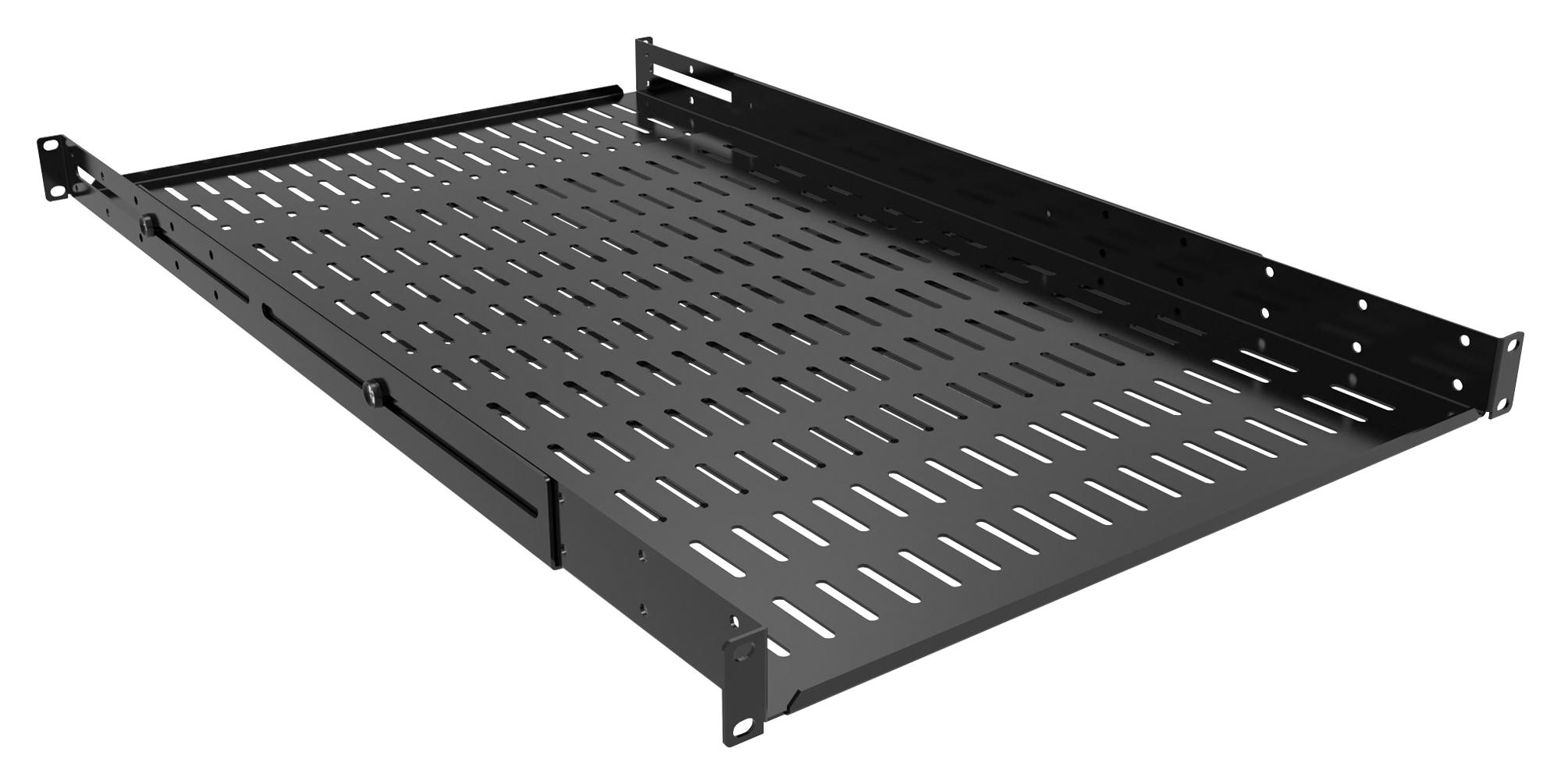

The Adjustable Depth Shelf 4Ds Series by Hammond Manufacturing is constructed of durable 14-gauge steel, featuring a telescoping design that adjusts from 25 to 36 inches in depth, accommodating various rack configurations. Once installed, the usable depth ranges from 28.5 to 36 inches. It fits within a single EIA rack unit and includes venting for enhanced cooling and cable management. The shelf supports up to 350 pounds, with an optional heavy-duty support bar increasing capacity to 550 pounds. Finished in a smooth black powder coat, it combines robustness with attractive appearance, and conforms to RoHS and REACH standards for safety and environmental compliance.
Hammond Manufacturing ADSV2536BK Adjustable Shelf Specifications:
- Constructed of 14-gauge steel
- Overall Dimensions: Height 1.72 inches, Width 19.00 inches
- Adjustable Depth Range: 25.00 to 36.00 inches
- Usable Depth with ADSB installed: 28.5 to 36 inches
- Supports up to 350 lbs, optional heavy-duty support bar increases to 550 lbs
- Finished in durable black powder paint
- Vented design for cooling and cable management
- Fits within a 1U EIA rack unit
- RoHS and REACH compliant
- Manufactured in North America
Buy the Buy Hammond Adjustable Depth Shelf 4Ds Part Number ADSV2536BK Online
Affordable and versatile, the Hammond Adjustable Shelf fitting within a single rack unit offers adjustable depth from 25 to 36 inches, supporting up to 350 pounds with an optional upgrade for 550 pounds. Crafted from 14-gauge steel, it features venting for improved cooling and cable management, finished in a durable powder coat. Designed for easy installation, this shelf is ideal for secure storage of equipment in data centers and server rooms, complying with RoHS and REACH standards for safety and environmental responsibility.
Buy Hammond adjustable steel rack shelf ADSV2536BK now and experience reliable support and flexible depth adjustment for your network or server racks.
