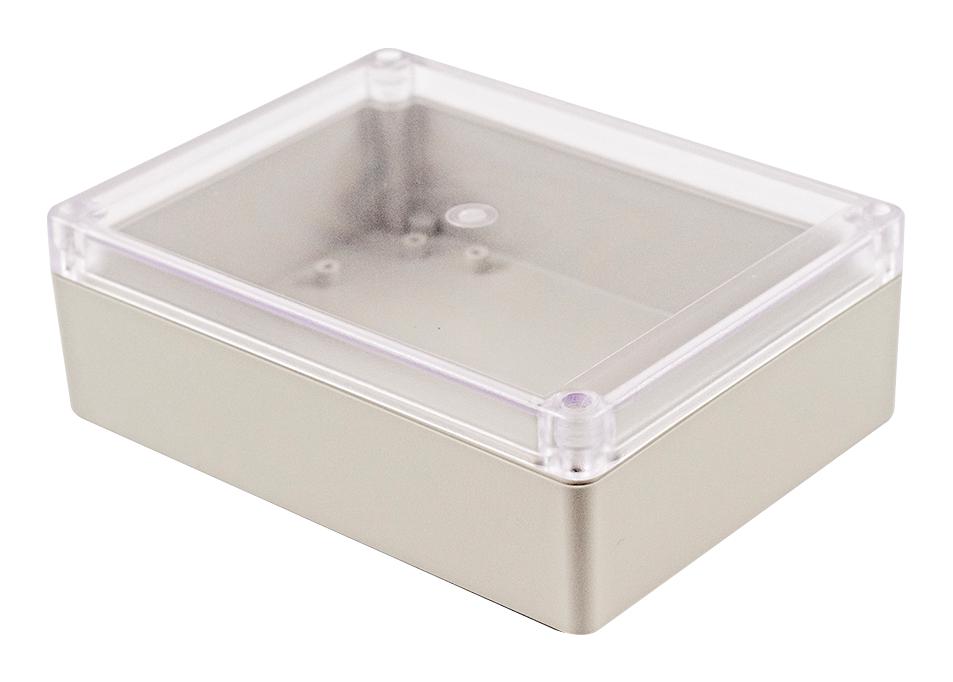

Hammond Manufacturing RP1235C Water-Tight Enclosure
The RP Series Water-Tight ABS and Polycarbonate Enclosures by Hammond Manufacturing are designed for mounting printed circuit boards and electronic components. Available in general purpose ABS plastic or durable polycarbonate, both carry UL94 HB flammability ratings. Featuring gasketed lids with tongue & groove construction, these enclosures provide IP 65 protection against dust, oil, and water. The lids are secured with stainless steel screws, including internal DIN rail mounting options, and come with gasket and mounting hardware for easy installation. Suitable for electronic, industrial, or control applications, they are available in various sizes, with options for clear or opaque lids, and with or without bottom flanges.
Hammond Manufacturing RP1235C Water-Tight Enclosure Specifications:
- Material: ABS plastic or polycarbonate
- Flammability Rating: UL94 HB
- Protection Level: IP 65
- Lid Type: Gasketed with tongue & groove construction
- Fasteners: Stainless steel M3.5 machine screws included
- Internal Mounting: DIN rail mounting tabs molded in
- Lid Color: Light gray or off-white, clear options available
- Dimensions: Varies by model, with heights from 28 mm to 110 mm and lengths up to 250 mm
- Design Features: Corrosion-resistant hardware, field-installable gasket, recessed label area
- Construction: Enclosures are suitable for mounting printed circuit boards, panels, or components
- Additional Features: Integral bottom flange options, designed for controlled environments
Buy the Hammond Series RP Water-Tight Enclosure: RP1235C
Secure your electronic components with the Hammond Series RP Water-Tight Enclosure RP1235C. Designed for durability, IP 65 protection, and easy mounting, it offers a gasketed lid with tongue & groove construction, stainless steel screws, and internal DIN rail mounts. Available in ABS or polycarbonate, these enclosures are ideal for industrial, control, or electronic applications, ensuring protection against dust, oil, and water. Choose from sizes with clear or opaque lids and options with or without bottom flanges for versatile installation success.
Buy Hammond Series RP Water-Tight Enclosure RP1235C now and experience unmatched reliability and performance for your electronic protection needs.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RP1235C?
You can click on the BUY or RFQ button to purchase RP1235C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RP1235C?
You can download the RP1235C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RP1235C?
Hammond Manufacturing
