Hammond Manufacturing BE2F Energy Limiting Power Supply

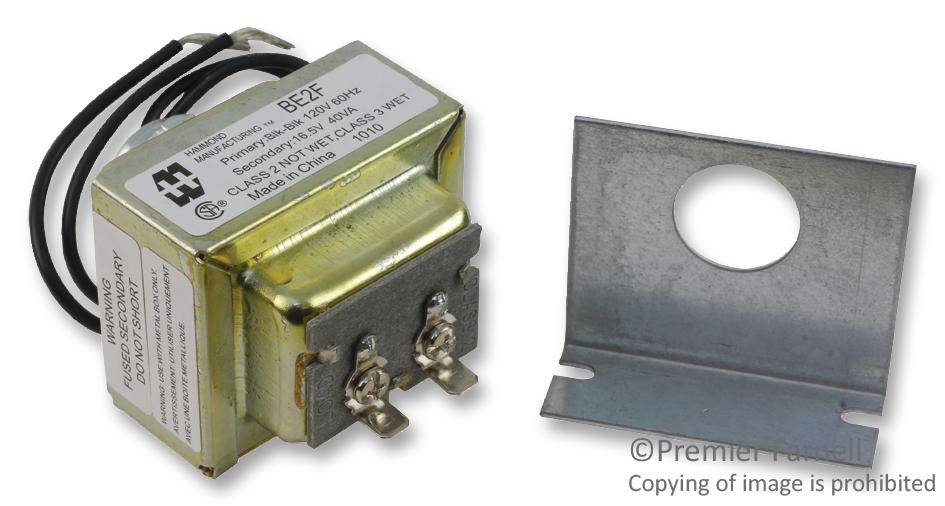

The BE2F transformer is a 40VA Class 2 energy-limiting power supply designed for surface mounting. It features primary input leads that are stripped and secondary output connections via screw terminals or quick-fit tabs. Built with rugged construction, low noise, and a cool-running design, it operates efficiently at 60Hz. The transformer is CSA certified and suitable for various applications including chimes, doorbells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, and intercoms. Installation is straightforward with a nipple locknut, locknut, and mounting bracket included.
Hammond Manufacturing BE2F Energy Limiting Power Supply Specifications:
- Power Rating: 40VA
- Input Voltage: 120V, 240V, 208/240V, or 347V (depending on model)
- Output Voltage: 16.5V at 2.42A, 24V at 1.67A, or 24V at 1.67A (varies by model)
- Frequency: 60Hz
- Mounting: Surface mount with nipple locknut and bracket
- Construction: Rugged, low noise, cool running design
- Leads: Stripped primary input, screw or quick-fit output terminals
- Certification: CSA certified (LR 3902), compliant with CSA C22.2 No. 66 Part B
- Temperature Rating: 105°C design
- Application: Chimes, doorbells, security, lighting, furnaces, humidifiers, appliances, vending, intercom
Buy the Buy Hammond Class 2 Energy Limiting Power Supply Part Number BE2F Online
Purchase the Hammond BE2F energy-limiting transformer online today to ensure reliable power for security, lighting, and appliance systems. Designed with rugged construction, it provides low noise and efficient operation at 60Hz. Its surface-mount design allows easy installation using a nipple locknut, locknut, and mounting bracket included. CSA certified, it supports applications such as chimes, doorbells, humidifiers, and vending machines, offering a durable solution for various electrical needs. Buy now for quality and long-lasting performance in your electrical projects.
Get Hammond BE2F today—built for robust performance in security and lighting applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing BE2F?
You can click on the BUY or RFQ button to purchase BE2F from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part BE2F?
You can download the BE2F datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of BE2F?
Hammond Manufacturing
