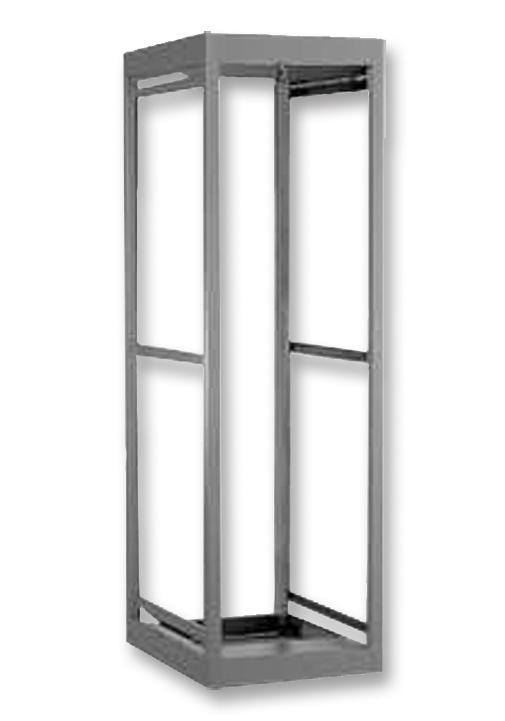

Hammond Manufacturing C2F193523LG1 Equipment Storage Rack
This modular equipment storage rack cabinet from the C2 Series provides a robust 1,500 lbs weight capacity, constructed from 14-gauge steel for the body, with doors and side panels of 16-gauge steel. Features include zinc-plated mounting rails for superior grounding, optional EIA-310-D compliant rails, and multiple top panel options such as solid, vented, or fan-cutout versions with pre-installed fans capable of up to 550 CFM. Finished in textured black powder paint, it is RoHS compliant, tested to nearly double its load rating, and supported by four leveling feet with optional casters for easy mobility.
Hammond Manufacturing C2F193523LG1 Equipment Storage Rack Specifications:
- Construction: 14-gauge steel body, 16-gauge steel doors and side panels, 10-gauge steel tapped mounting rails, 12-gauge steel square hole mounting rails
- Load Capacity: 1,500 lbs (680 kg), tested to nearly double the rated load
- Features: Zinc-plated surface for grounding, adjustable C-channel mounting depth, four leveling feet, support for casters
- Finish: Textured black powder paint, optional colors available, RoHS compliant
- Panels: Optional solid, vented, or fan cutout with 550 CFM fans, RoHS compliant, manufactured in North America
- Dimensions (overall): Height 43.16 inches, Width 23.00 inches, Depth 23.62 inches for 20U models, with various models up to 49U
- Mounting: Compatible with EIA-310-D, 10-32 tapped or square hole rails, with side and top panels for customization
- Grounding: Included grounding studs on frame, side panels, and doors to ensure electrical safety
- Additional: Support for optional caster wheels, finished in textured black powder coat, tested for durability and safety
Buy the Hammond C2F193523LG1 – Reliable Equipment Storage Rack for Industrial Applications
Purchase the Hammond Equipment Storage Rack today to enhance your industrial setup. Crafted from durable steel with a 1,500 lbs capacity, this modular rack features adjustable mounting options, grounding rails, and optional vented or solid tops with pre-installed fans capable of 550 CFM. Its rugged finish in textured black powder paint ensures longevity and resistance to harsh environments. The rack supports casters for mobility, making it ideal for flexible and secure equipment management in manufacturing, automation, and electronics facilities. Order now for reliable, long-lasting storage solutions.
Get Hammond C2F193523LG1 today—built for durability, customizable panels, and reliable grounding in industrial environments.
