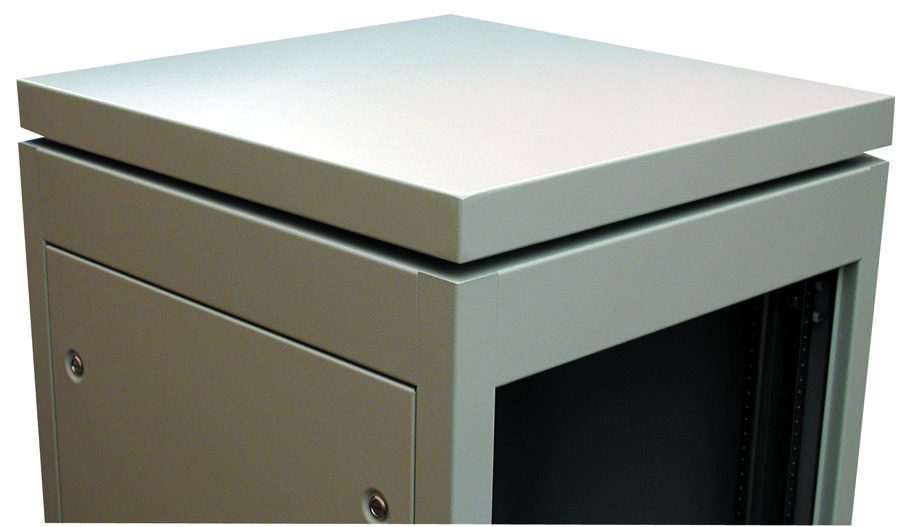

Hammond Manufacturing C2T1931RLG1 Modular Equipment Rack
This is a modular equipment storage rack cabinet designed for versatile industrial and electronic applications. Made from durable 14-gauge steel with options for vented, solid, or fan-assisted top panels, it supports equipment up to 1500 pounds. Features zinc-plated mounting rails for grounding, nearly double rated load capacity, and finished in textured black powder paint. The frame includes four leveling feet with optional casters, grounding studs, and a variety of accessories for cable management and security, making it a reliable choice for data centers, automation, and control environments.
Hammond Manufacturing C2T1931RLG1 Modular Equipment Rack Specifications:
- Constructed in 14-gauge steel (body), 16-gauge steel (doors and side panels), 10-gauge steel (tapped mounting rails), 12-gauge steel (square hole mounting rails)
- Supports equipment up to 1500 lbs (680 kg), tested to nearly double the rated load
- Features zinc-plated mounting rails for grounding, four leveling feet, and optional casters
- Finished in textured black powder paint; additional colors available upon request
- Includes grounding studs on frame, side panels, and doors; supports EIA-310-D compliant 10-32 tapped or square hole rails
- Optional fan-capable top panels with up to 550 CFM, vented, solid, or with cable entry holes
- Overall dimensions for part number C2T1931RLG1: 43.16 inches (height) x 23.00 inches (width) x 31.50 inches (depth). Supports 20U rack units, with mounting dimensions 35.06 inches (height) x 29.50 inches (depth), compatible with various accessories
- RoHS compliant, manufactured in North America, suitable for industrial, automation, and electronics systems
Buy the Buy Hammond Modular Equipment Rack Part Number C2T1931RLG1 Online
Order the Hammond modular equipment rack C2T1931RLG1 online today and ensure your industrial or electronic systems have a reliable, durable, and customizable storage solution. Crafted from high-quality steel with options for vented, solid, or fan-lined top panels, this rack supports equipment up to 1500 pounds and offers integrated grounding, adjustable leveling, and extensive accessories for cable management and security. Whether for data centers or automation environments, buy online now and enhance your infrastructure with proven ruggedness and flexibility.
Buy Hammond C2T1931RLG1 sturdy industrial rack now and experience unmatched reliability and performance for your electronic or control system needs.
