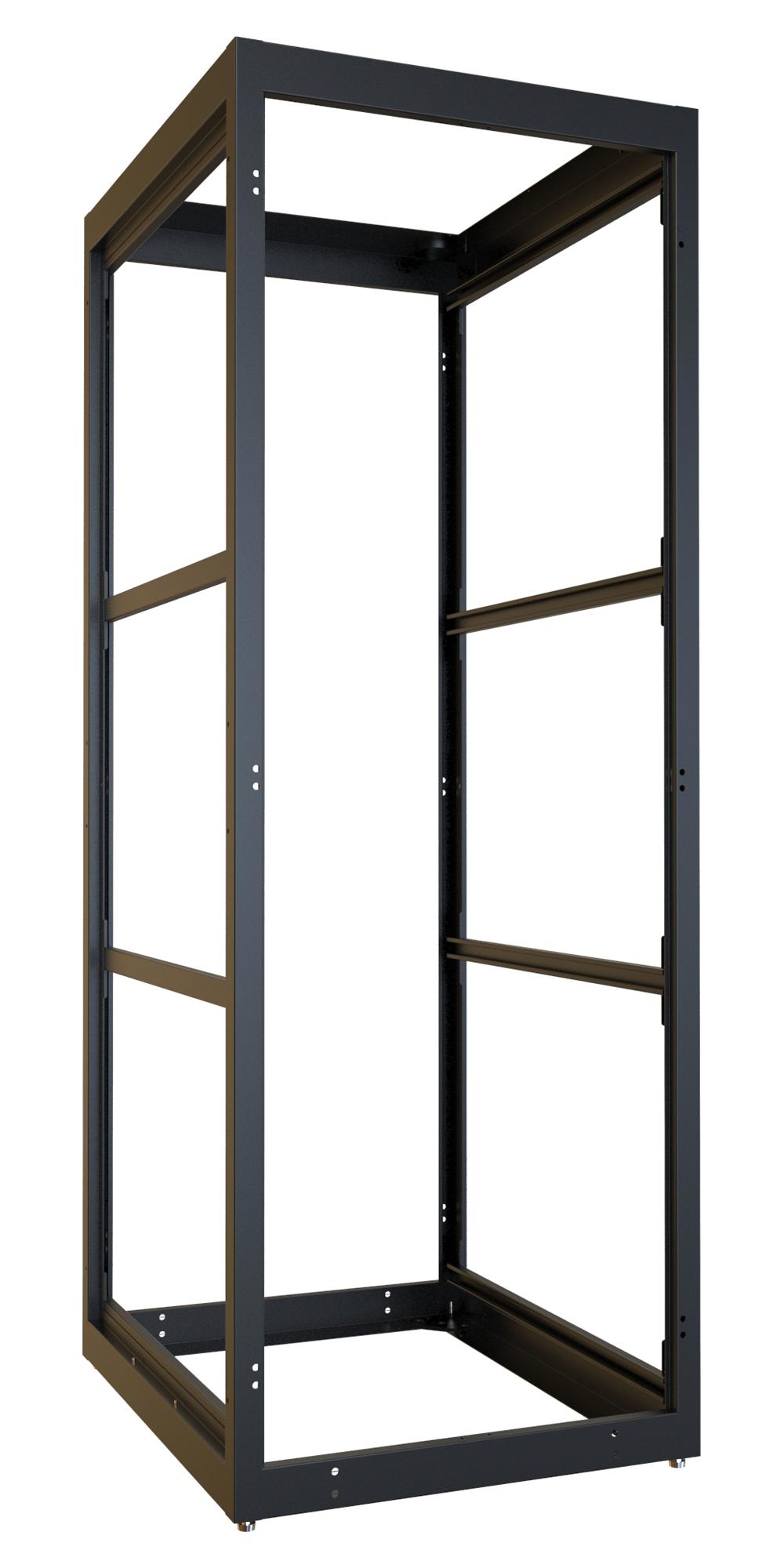

Hammond Manufacturing C4F307731BK1 Server Rack Cabinet
The Modular Server Rack Cabinet from Hammond's C4 Series offers flexible configuration options with 24U, 42U, and 44U mounting heights in frame widths of 24 and 30 inches, and depths from 31.5 to 42 inches. Constructed from durable steel with reinforced brackets, it supports up to 3,000 lbs load capacity, meets UL 2416 standards, and is finished in textured black powder paint. Available with solid, vented, or perforated doors, side panels, and various cable management accessories, this cabinet combines robustness with thermal and security features for optimal server and network equipment housing.
Hammond Manufacturing C4F307731BK1 Server Rack Cabinet Specifications:
- Frame constructed in 14-gauge steel with reinforced corner brackets
- Doors and side panels in 16-gauge steel
- 19" mounting rails in 12-gauge or 10-gauge steel with rack unit indicators
- Supports up to 3,000 lbs load capacity, static tested to 12,000 lbs
- Finished in textured black powder paint
- Meets UL 2416, PCI DSS, RoHS standards
- Dimensions vary by model: height from 48.58 to 83.58 inches, width 24 or 30 inches, depth 31.5 to 42 inches
- Includes leveling feet, optional casters, grounding studs
- Compatible with various doors, side panels, cable management accessories
Buy the Buy Hammond Modular Server Rack Cabinet C4 Series Part Number C4F307731BK1 Online
Purchase the Hammond Modular Server Rack Cabinet C4 Series online today and take advantage of flexible configurations including various sizes, doors, and cable management options. Designed for durability and security, it supports up to 3,000 pounds and meets UL 2416 standards. Ideal for data centers, telecom rooms, and network closets, this cabinet provides superior strength with reinforced steel construction, customizable features, and a textured black finish. Experience reliable, efficient equipment housing by ordering online now.
Order your Hammond Series C4F307731BK1 server rack cabinet today and enhance your data center with robust, customizable server storage solutions.
