Hammond Manufacturing CS12124 Electrical Junction Box

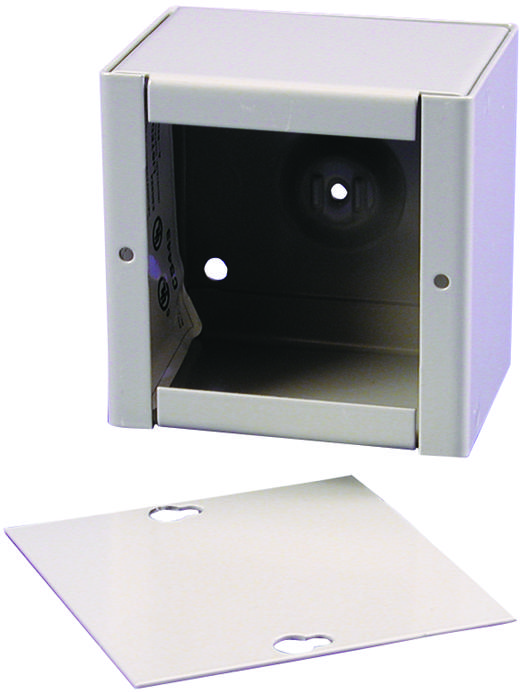

The Hammond Series Type 1 Mild Steel Junction Box CS Series is designed for indoor commercial use, serving as a junction, pull, or switch box. Constructed with formed and spot-welded steel from 16, 14, or 12 gauge depending on size, it features flat steel covers fastened with plated steel screws. Keyhole slots allow cover removal without fully unscrewing, and through holes in the back enable wall mounting. The enclosure is finished in durable ANSI 61 gray powder coating, and grounded in embossed locations for safety. Suitable for various electrical applications, it meets UL 50 Type 1, CSA Type 1, and NEMA Type 1 standards, with IP20 IEC 60529 compliance.
Hammond Manufacturing CS12124 Electrical Junction Box Specifications:
- Material: Steel, formed and spot welded from 16, 14, or 12 gauge steel
- Finish: ANSI 61 gray powder coating
- Construction: Flat steel covers with plated steel screws, keyhole slots for easy removal
- Wall Mounting: Through holes in back for secure attachment
- Grounding: Embossed grounding location in body
- Standards: UL 50 Type 1, CSA Type 1, NEMA Type 1, IEC 60529 IP20
- Part Dimensions: Length 12.00 inches, width 12.00 inches, depth 4.00 inches
- Mounting Centers: 9.00 inches apart vertically and horizontally
- Weight: 8 pounds
- Application: Indoor commercial electrical wiring, junction, pull, or switch box
- Environmental: Suitable for indoor dry locations, with durable powder coat finish
Buy the Hammond Series CS Junction Box: CS12124
Purchase the Hammond Series CS12124 electrical junction box online today to guarantee high-quality, reliable electrical connections. This steel enclosure is crafted from durable gauge steel with a powder-coated gray finish, providing excellent corrosion resistance and a professional appearance. Its easy-to-remove cover with keyhole slots simplifies installation and maintenance, making it ideal for indoor commercial wiring. Designed to meet UL 50 Type 1, CSA Type 1, NEMA Type 1, and IEC IP20 standards, this junction box ensures safety, durability, and compliance for wiring projects of all sizes. Order now for fast, convenient online delivery.
Order your Hammond Series CS12124 junction box today and ensure reliable, durable electrical connections for your indoor commercial projects.
