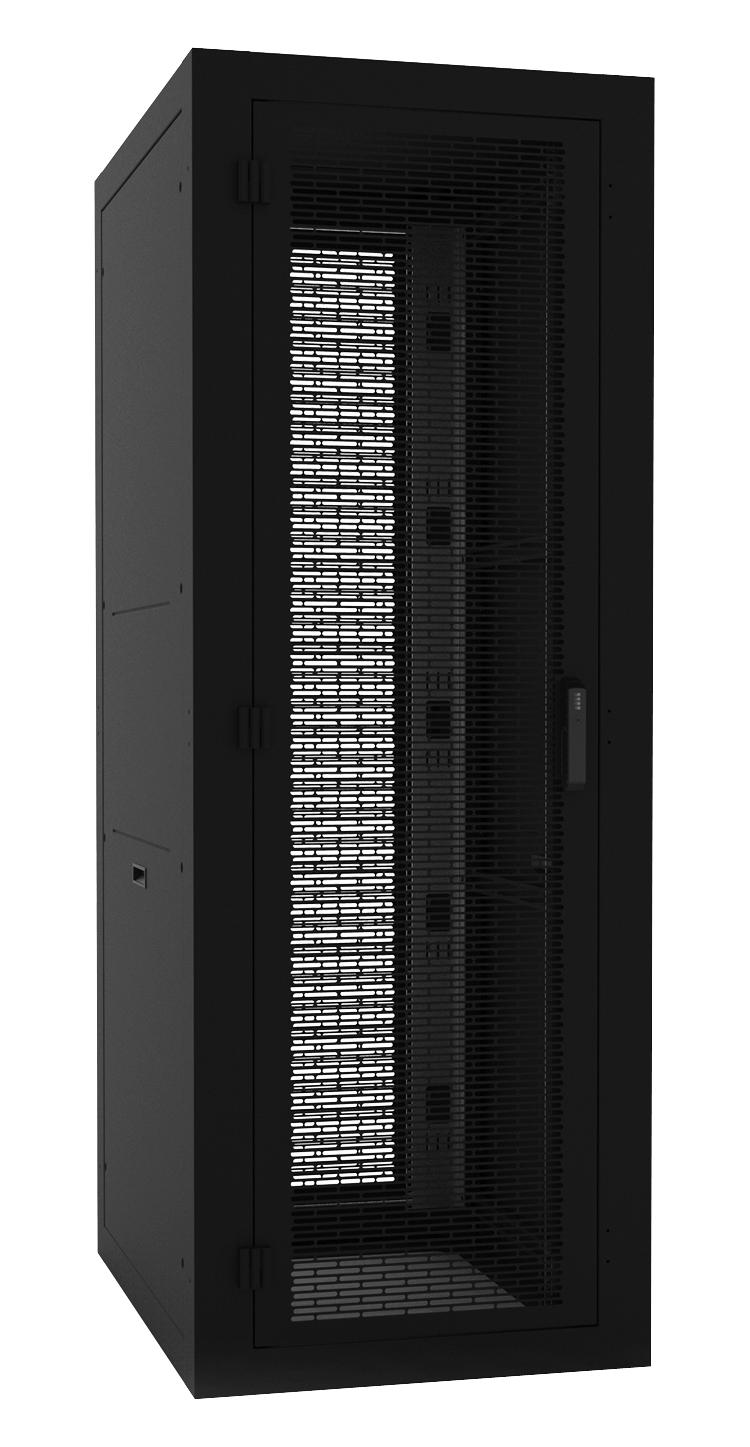

Hammond Manufacturing DCZ4A307742BK Seismic Server Cabinet
The Hammond GR-63-CORE Zone 4 Seismic Server Cabinet is designed for critical seismic environments, offering a rugged 14-gauge steel frame with reinforced corner brackets. It supports up to 3,000 lbs and features adjustable EIA-compliant rails, cable management options, and grounding studs. The robust construction includes textured powder paint finish and seismic bolt-down compatibility. Suitable for high-security, high-load data centers, it ensures safety and stability in Zone 4 earthquake zones with UL and Telcordia certification. Optional accessories enhance customization and cable organization.
Hammond Manufacturing DCZ4A307742BK Seismic Server Cabinet Specifications:
- Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets
- Doors and side panels made of 16-gauge steel
- Includes two pairs of EIA compliant square hole mounting rails with rack unit markings
- Mounting rails are zinc-plated for superior grounding
- Dynamic seismic load rated up to 1,000 lbs of equipment and 100 lbs of cable
- Supports static load up to 12,000 lbs
- UL Listed 2416, GR-63-CORE certified, RoHS compliant
- Finished in textured black powder paint, available in white
- Includes grounding studs bonded to frame, side panels, and doors
- Overall dimensions: Height 82.81 inches, Width 30 inches, Depth 42 inches
- Rack usable height: 44U, Depth: 35.75 inches, Width: 19 inches
- Features adjustable leveling feet, recessed casters, and seismic bolt-down hardware
- Includes removable front doors, side panels, and top panel, with optional glass or vented door options
Buy the Hammond Series SEISMIC Server Cabinet: DCZ4A307742BK
Secure your data infrastructure with the Hammond Seismic Server Cabinet designed for Zone 4 environments, supporting up to 3,000 lbs. Its reinforced steel construction, adjustable EIA rails, and comprehensive cable management provide durability, flexibility, and security critical for high-stakes data centers. The UL-listed, Telcordia-certified design includes mounting options, grounding studs, and optional doors for enhanced security. Easy to install with leveling feet and seismic bolt-down hardware, this cabinet ensures safety, stability, and compliance, making it the ideal choice for earthquake-prone regions and demanding applications.
Order your Hammond Series SEISMIC Server Cabinet today and ensure your critical equipment is secure and compliant in seismic environments.
