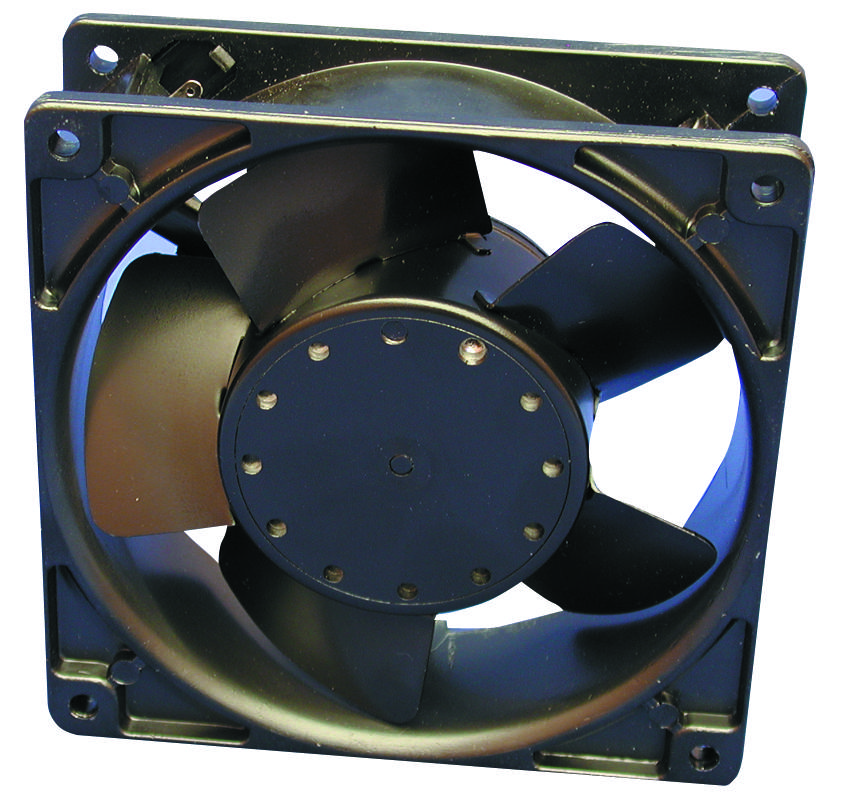

Hammond Manufacturing DNMF100AC230 Industrial Tube Axial Fan
The DNMF100AC230 is a durable tube-axial fan designed with an impedance-protected motor for reliable performance in industrial environments. It features ball bearing construction, with options for metal or plastic blades, housed in a lightweight die-cast aluminum body for excellent heat dissipation. The fan complies with UL 507 and CSA standards, ensuring safety and quality. It operates on 230 VAC, 50/60 Hz, with a cooling system driven by incoming air. Suitable for ventilation, cooling, and exhaust applications, this fan is ideal for industrial and commercial use, offering high airflow rates and quiet operation.
Hammond Manufacturing DNMF100AC230 Industrial Tube Axial Fan Specifications:
- Overall Dimensions: 4.70" (120mm) diameter, 1.50" (38mm) depth
- Voltage: 230 VAC, 50/60 Hz
- Motor: Impedance protected, Class-B insulated
- Construction: Ball bearing, die-cast aluminum body
- Blade Type: Metal or plastic (user options)
- Airflow: 105 CFM at 50Hz, 105 CFM at 60Hz
- Rotational Direction: Counter-clockwise
- Noise Level: 56 dB
- Cooling Method: Incoming air cooled
- Certification: UL 507 and CSA certified
- Mounting: Includes hardware, designed for easy installation
Buy the Hammond Manufacturing DNMF100AC230 – Reliable Cooling Fan for Industrial Applications
Purchase the Hammond Manufacturing DNMF100AC230 tube-axial fan online today and ensure effective cooling and ventilation for your industrial projects. This high-performance fan features an impedance-protected motor, ball bearing construction, and a durable die-cast aluminum body, making it suitable for demanding environments. Operating on 230 VAC, it provides consistent airflow with UL 507 and CSA certification for safety and quality assurance. Designed for easy installation, this fan supports both metal and plastic blades, delivering quiet operation and reliable performance—ideal for commercial and industrial ventilation requirements.
Order your Hammond Manufacturing DNMF100AC230 tube-axial fan today and enhance your industrial ventilation systems with dependable airflow and quality construction.
Frequently Asked Questions
Where can I buy Hammond Manufacturing DNMF100AC230?
You can click on the BUY or RFQ button to purchase DNMF100AC230 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part DNMF100AC230?
You can download the DNMF100AC230 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of DNMF100AC230?
Hammond Manufacturing
