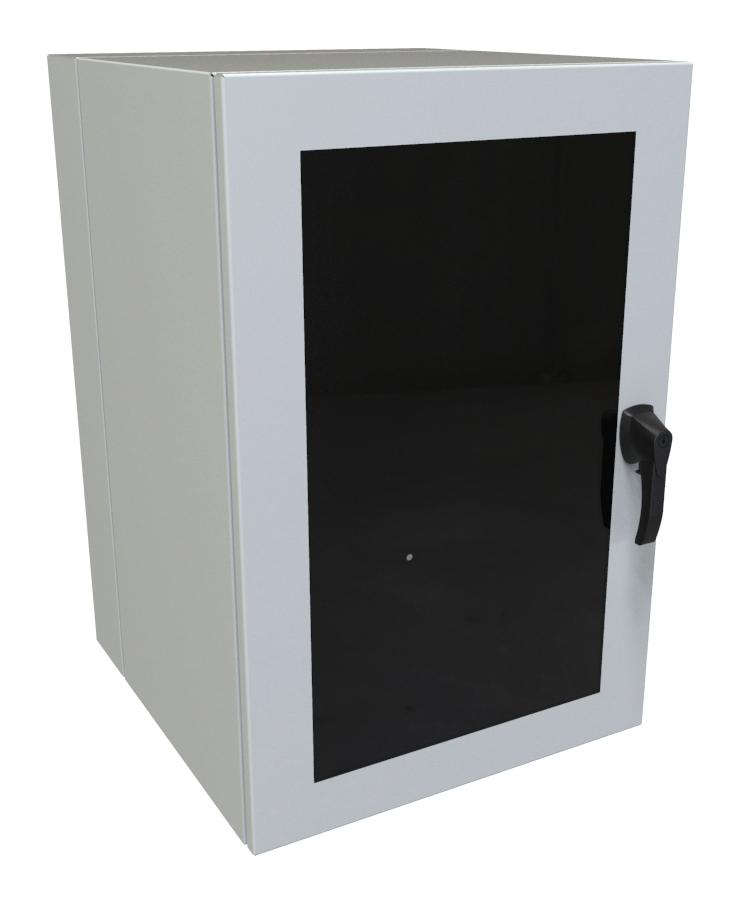

Hammond Manufacturing EN4DH362424WLG Wall Mount Cabinet
The NEMA Rated Swing-Out Wall Mount Cabinet from the EN4DH Series offers robust protection for network access equipment in harsh environments. Crafted from 14-gauge steel, it features dual access doors with UL and CSA ratings for dust, oil, and water resistance, meeting NEMA type 3R, 4, and 12 standards. The cabinet includes adjustable zinc-plated rack rails, a poured-in-place gasket for environmental sealing, and options for solid or UV-resistant polycarbonate window doors. Its modular design ensures easy installation, maintenance, and security, making it ideal for outdoor or indoor network enclosures.
Hammond Manufacturing EN4DH362424WLG Wall Mount Cabinet Specifications:
- Back pan, body, and doors are made from 14 gauge steel
- Seamless poured-in-place gasket for environmental protection
- Window door constructed with UV resistant polycarbonate
- Zinc-plated rack rails drilled and tapped 10-32 for 19" standards
- Finished with textured RAL7035 light gray powder paint
- Designed to meet NEMA type 3R, 4, 12 and IEC 60529 IP66 standards
- Overall dimensions vary by model, e.g., 36.00 H x 24.00 W x 24.00 D inches for larger units
- Weight capacity ranges from 100 lbs to 180 lbs depending on model
- Includes adjustable rack rails and mounting hardware, with optional accessories available
Buy the Buy Hammond En4dh Series NEMA Rated Wall Mount Cabinet Part Number EN4DH362424WLG Online
Purchase the Hammond NEMA rated wall mount cabinet EN4DH series online for reliable protection of network equipment in outdoor or harsh environments. This heavy-duty enclosure features dual access doors, adjustable 19" rack rails, and seamless gasket sealing, ensuring easy maintenance and superior environmental resistance. Constructed from durable steel with powder coating, it complies with NEMA 3R, 4, 12, and IP66 standards. Ideal for mounting network hardware securely while providing protection against dust, water, and oil, it’s the perfect choice for outdoor network infrastructure needs.
Get Hammond EN4DH362424WLG today—designed for outdoor network equipment with secure dual access and environmental protection.
Frequently Asked Questions
Where can I buy Hammond Manufacturing EN4DH362424WLG?
You can click on the BUY or RFQ button to purchase EN4DH362424WLG from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part EN4DH362424WLG?
You can download the EN4DH362424WLG datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of EN4DH362424WLG?
Hammond Manufacturing
