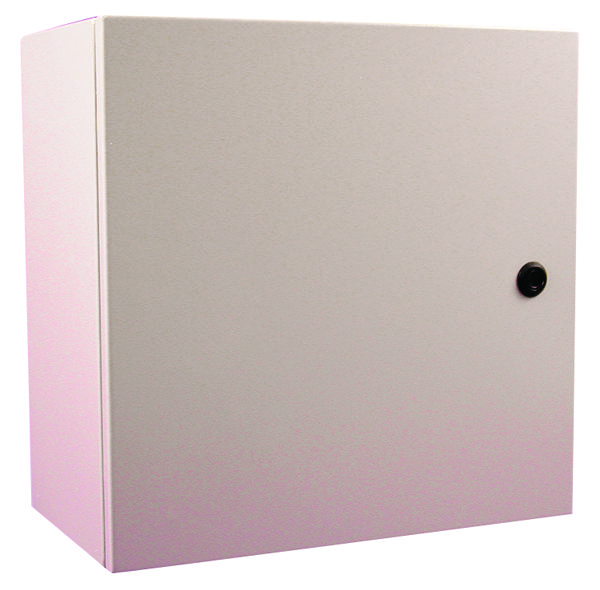

Hammond Manufacturing EN4SD16168GY Wallmount Enclosure
The EN4SD16168GY is a mild steel wall-mount enclosure designed to house electrical and electronic equipment, offering protection against harsh environments suitable for wall-mounted applications. It features a sleek design with hidden hinges and attractive latching systems, making it ideal for high-tech installations. The enclosure includes door stiffeners for added strength and flexibility in mounting options. Equipped with a quarter-turn latch and multi-point handle that is key lockable, both zinc die-cast with a black epoxy finish, ensuring durability and security. The enclosure and door are phosphatized and finished with a recoatable ANSI 61 smooth grey powder coating, providing corrosion resistance. It has a NEMA 3R, 4, 12 protection rating, manufactured from formed 14 or 16 gauge steel with smooth, welded seams. The design includes a formed lip to prevent liquid and contaminants ingress. Doors are removable and interchangeable, with seamless poured-in-place gasket sealing. Collar studs facilitate inner panel mounting, and bonding and grounding studs are included for electrical safety. Hinges and hinge pins are made from stainless steel (304), with door alignment guides on 36-inch wide enclosures for easy installation. Suitable for industrial applications.
Hammond Manufacturing EN4SD16168GY Wallmount Enclosure Specifications:
- Material: Mild steel (14 or 16 gauge)
- Finish: ANSI 61 smooth grey powder coating
- Protection Rating: NEMA 3R, 4, 12 / IEC IP66
- Seams: Seamless welds, ground smooth
- Door: Removable, interchangeable with hidden hinges
- Hinges: Stainless steel (304)
- Door Latch: Quarter-turn, multi-point, key lockable (zinc die-cast, black epoxy)
- Sealing: Poured-in-place gasket
- Inner Panel Mounting: Collar studs
- Grounding: Bonding and grounding studs included
- Dimensions: 16.00 x 16.00 x 6.00 inches
- Door Stiffeners: Provided for strength and mounting options
- Lip: Formed lip to exclude liquids and contaminants
- Application: Enclosing electrical and electronic equipment, harsh industrial environments
Buy the Hammond EN4SD16168GY – Reliable Wallmount Enclosure for Industrial Applications
Purchase the Hammond wallmount enclosure EN4SD16168GY online today and ensure your electrical equipment is protected against harsh industrial conditions. Featuring a durable mild steel construction, high-grade powder coating, and reliable sealing, this enclosure offers high protection levels including NEMA 3R, 4, and 12 ratings. Its sleek design with hidden hinges, secure quarter-turn latch, and removable door provides convenience and security for high-tech installations. Order now to benefit from quick delivery, competitive pricing, and unmatched quality for industrial electrical and electronic housing needs.
Buy Hammond EN4SD16168GY now and experience unmatched durability, corrosion resistance, and secure electronic housing for industrial environments.
