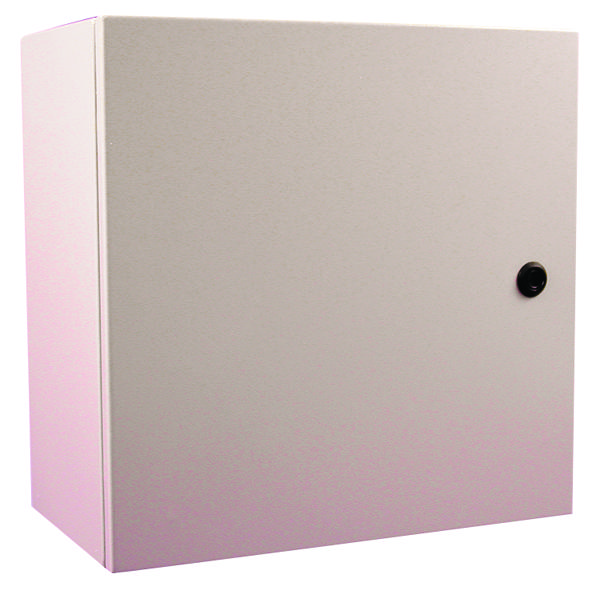

Hammond Manufacturing EN4SD16208GY Wallmount Enclosure
The EN4SD16208GY is a mild steel wall-mount enclosure designed for electrical and electronic equipment protection in harsh environments. It features a stylish design with hidden hinges and an attractive latching system, making it suitable for high-tech installations. The enclosure includes door stiffeners for increased strength and additional mounting options. Equipped with a quarter-turn latch and a multi-point, key-lockable handle in black epoxy-coated zinc die-cast, it is finished with a phosphatized surface and a recoatable ANSI 61 smooth grey powder coating. This enclosure provides NEMA 3R, 4, and 12 protection ratings, constructed from formed 14 or 16 gauge steel with smooth, welded seams. The enclosure has a formed lip to prevent ingress of liquids and contaminants, and doors that can be easily removed and interchanged. It features a poured-in-place gasket, mounting collar studs for internal panels, and grounding/stud bonding points. Hinges and hinge pins are made from stainless steel, with the door alignment guide available on wider models. Suitable for industrial applications.
Hammond Manufacturing EN4SD16208GY Wallmount Enclosure Specifications:
- Material: Mild steel, formed 14 or 16 gauge
- Finish: Phosphatized surface with ANSI 61 smooth grey powder coating
- Protection Ratings: NEMA 3R, 4, and 12, IEC IP66
- Construction: Seamless welded seams, ground smooth
- Features: Hidden hinges, quarter-turn lock, multi-point handle
- Door: Removable and interchangeable with pour-in-place gasket
- Mounting: Collar studs for internal panels, grounding/stud points included
- Hinges: Stainless steel, stainless steel hinge pins
- Lip design: Formed lip to exclude liquids and contaminants
- Dimensions: 16.00 inches width, 20.00 inches height, 8.00 inches depth
- Weight: Approximately 22 lbs
Buy the Hammond Series Eclipse Wallmount Enclosure: EN4SD16208GY
Order the Hammond Series Eclipse Wallmount Enclosure EN4SD16208GY online today and secure reliable protection for electrical and electronic equipment. Crafted from durable mild steel with a corrosion-resistant ANSI 61 smooth grey powder coating, this enclosure offers NEMA 3R, 4, and 12 ratings for industrial environments. Its hidden hinges, key lock handle, and removable doors with poured-in gasket ensure safety and ease of access. The stainless steel hinges and grounding points provide enhanced durability and safety, making it the perfect choice for demanding applications requiring robust protection and stylish appearance.
Buy Hammond Series Eclipse EN4SD16208GY now and experience unmatched reliability and performance in harsh environments with stylish design and secure locking.
