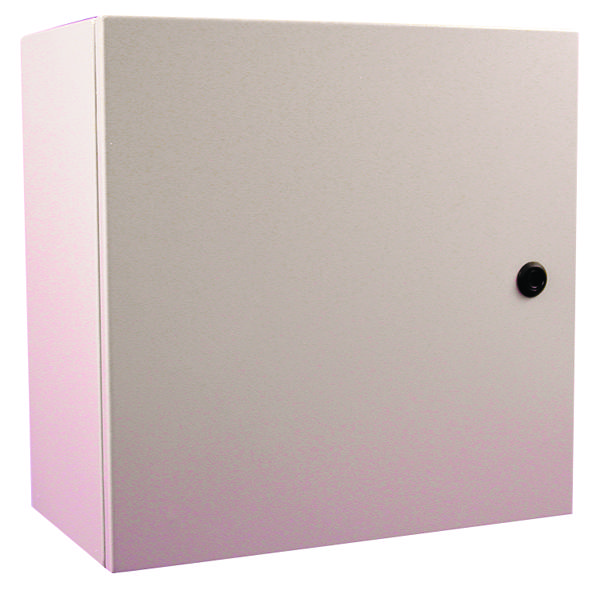

Hammond Manufacturing EN4SD20166GY Wallmount Enclosure
The EN4SD20166GY is a mild steel wall-mount enclosure designed to house electrical and electronic equipment. It offers protection against harsh environments and features a sleek design with hidden hinges and attractive latching systems, making it suitable for high-tech installations. The enclosure includes door stiffeners for added strength and rigidity, with options for additional mounting. Equipped with quarter-turn latches and a multi-point, key-lockable handle made of zinc die-cast with a black epoxy finish, it ensures secure access. The enclosure's surface is phosphatized and finished with a recoatable ANSI 61 smooth grey powder coating, providing durability. Designed to meet NEMA 3R, 4, and 12 protection ratings, it is manufactured from 14 or 16 gauge steel with smooth, continuously welded seams ground to a finish. The formed lip helps exclude liquids and contaminants. Doors are removable and interchangeable, featuring safety quarter-turn latches requiring tools to open, and may include door alignment guides for wide enclosures. Other features include seamless gasket sealing, collar studs for internal panel mounting, bonding and grounding studs, and stainless steel hinges and hinge pins for durability.
Hammond Manufacturing EN4SD20166GY Wallmount Enclosure Specifications:
- Material: Mild Steel
- Gauge: 14 or 16 gauge steel
- Finish: ANSI 61 smooth grey powder coating
- Protection Ratings: NEMA 3R, 4, and 12, IEC IP66
- Construction: Smooth, welded seams, phosphatized surface
- Door Latches: Quarter-turn, multi-point, key lockable, zinc diecast with black epoxy finish
- Hinges: Stainless steel
- Hinge Pins: Stainless steel
- Door Features: Removable, interchangeable, safety quarter-turn latch
- Seamless gasket: Poured-in place
- Mounting Features: Collar studs for internal panels, hardware kit included
- Additional: Formed lip for liquid and contaminant exclusion
- Standards: UL 508, CSA C22.2 No. 94, IEC 60529 IP66
Buy the Buy Hammond Enclosure Part Number EN4SD20166GY Online
Purchase the Hammond Wallmount Enclosure EN4SD20166GY online today for reliable protection of your electrical and electronic components. Crafted from durable mild steel with a smooth grey powder coat, this enclosure offers excellent resistance against harsh industrial environments. It features hidden hinges, secure quarter-turn latches, and a key-lockable handle for added safety. Its versatile design includes removable, interchangeable doors, internal mounting studs, and seamless gasket sealing, making installation straightforward and secure. Ensure your equipment is protected with a high-quality, UL-listed enclosure designed for long-lasting performance in demanding settings.
Get Hammond EN4SD20166GY today—built for durability, protection, and easy access in harsh industrial environments.
