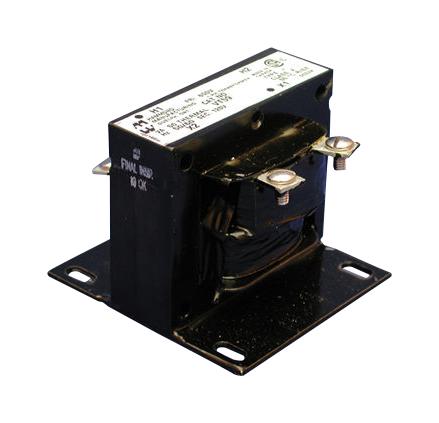

Hammond Manufacturing HX54A Potential Transformer
The HX54A potential transformer is designed for accurate voltage measurement in low-voltage AC systems. Suitable for 240V systems with a 12 VA rating, it features open construction and insulation rated for 4.0 KV rms testing. This transformer operates at 50/60 Hz, providing reliable voltage conversion with high accuracy, ideal for control panels and switchgear. It meets CSA certification standards, ensuring safety and compliance. With a compact design, the HX54A offers precise measurement capabilities for industrial and electrical applications, supporting efficient voltage monitoring in various environments.
Hammond Manufacturing HX54A Potential Transformer Specifications:
- Primary Voltage: 240 V
- Secondary Voltage: 120 V
- VA Rating: 12 VA
- Frequency: 50/60 Hz
- Insulation: Rated for 4.0 KV rms test
- Construction: Open type
- Dimensions: 3.00 / 3.25 / 2.56 / 2.50 / 2.50 inches (depending on model)
- Mounting: Slot Mounting
- Weight: 3.0 lbs
- Certifications: CSA certified LR3902 or LR38216
Buy the Hammond HX54A – Reliable Voltage Transformer for Industrial Applications
Purchase the Hammond HX54A potential transformer online today to ensure accurate and dependable voltage measurement in your electrical systems. Perfect for 240VAC applications, it features open construction, CSA certification, and high accuracy, making it ideal for control panels and switchgear environments. With adjustable mounting options and rated for 4.0 KV rms insulation testing, this compact transformer guarantees safety, precision, and durability. Order now to enhance your electrical system’s reliability with this high-quality, industrial-grade voltage transformer.
Buy Hammond HX54A now and experience unmatched reliability and performance in voltage measurement for industrial control and switchgear systems.
