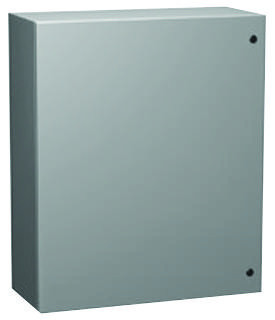

Hammond Manufacturing EN4SD24206GY Wallmount Enclosure
The wallmount enclosure from the Eclipse Series is designed for industrial electrical and electronic equipment protection. Made from formed 14 or 16 gauge steel, it features smooth, welded seams, stainless steel hinges, and a poured-in-place gasket to ensure a tight seal against liquids and contaminants. The enclosure includes a quarter turn latch with a key lock, removable hinged doors, and a powder-coated finish in ANSI 61 Gray or RAL7035 Light Gray. It offers various sizes, accessories, and mounting options, suitable for harsh environments compliant with UL 508, CSA, NEMA, and IEC standards, providing durability, enhanced security, and easy installation.
Hammond Manufacturing EN4SD24206GY Wallmount Enclosure Specifications:
- Material: Formed 14 or 16 gauge steel
- Finish: Powder-coated in ANSI 61 Gray or RAL7035 Light Gray
- Hinges: 304 stainless steel
- Hinge pins: Stainless steel
- Door latch: Quarter turn, lockable with key
- Gasket: Seamless poured-in-place gasket
- Standards: UL 508 Type 3R, 4, 12; CSA Type 3R, 4, 12; NEMA Type BR, 4, 12; IEC 60529, IP66
- Dimensions: Various options, typical sizes in product line range from 12.00" to 72.00" wide, height from 12.00" to 36.00", depth from 6.00" to 16.00"
- Weight: Ranges from approximately 6.20 lbs to 220 lbs depending on size
- Includes hardware kit with panel mounting nuts and sealing washers, bonding stud for grounding, and removable doors for modifications.
Buy the Buy Hammond Enclosure Wallmount Part Number EN4SD24206GY Online
Purchase the durable wallmount enclosure online today. Engineered from heavy-duty steel with stainless steel hinges and lockable latch, it ensures superior protection and corrosion resistance. Ideal for harsh industrial settings, it features seamless gasket sealing, easy access doors, and adjustable sizes to fit your needs. Easy to install with comprehensive mounting hardware, this enclosure guarantees long-lasting performance and secure equipment containment. Order now and safeguard your electrical and electronic components efficiently with our high-quality enclosure.
Buy Hammond Enclosure wallmount part number EN4SD24206GY now and experience unmatched durability, security, and reliable protection for industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing EN4SD24206GY?
You can click on the BUY or RFQ button to purchase EN4SD24206GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part EN4SD24206GY?
You can download the EN4SD24206GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of EN4SD24206GY?
Hammond Manufacturing
