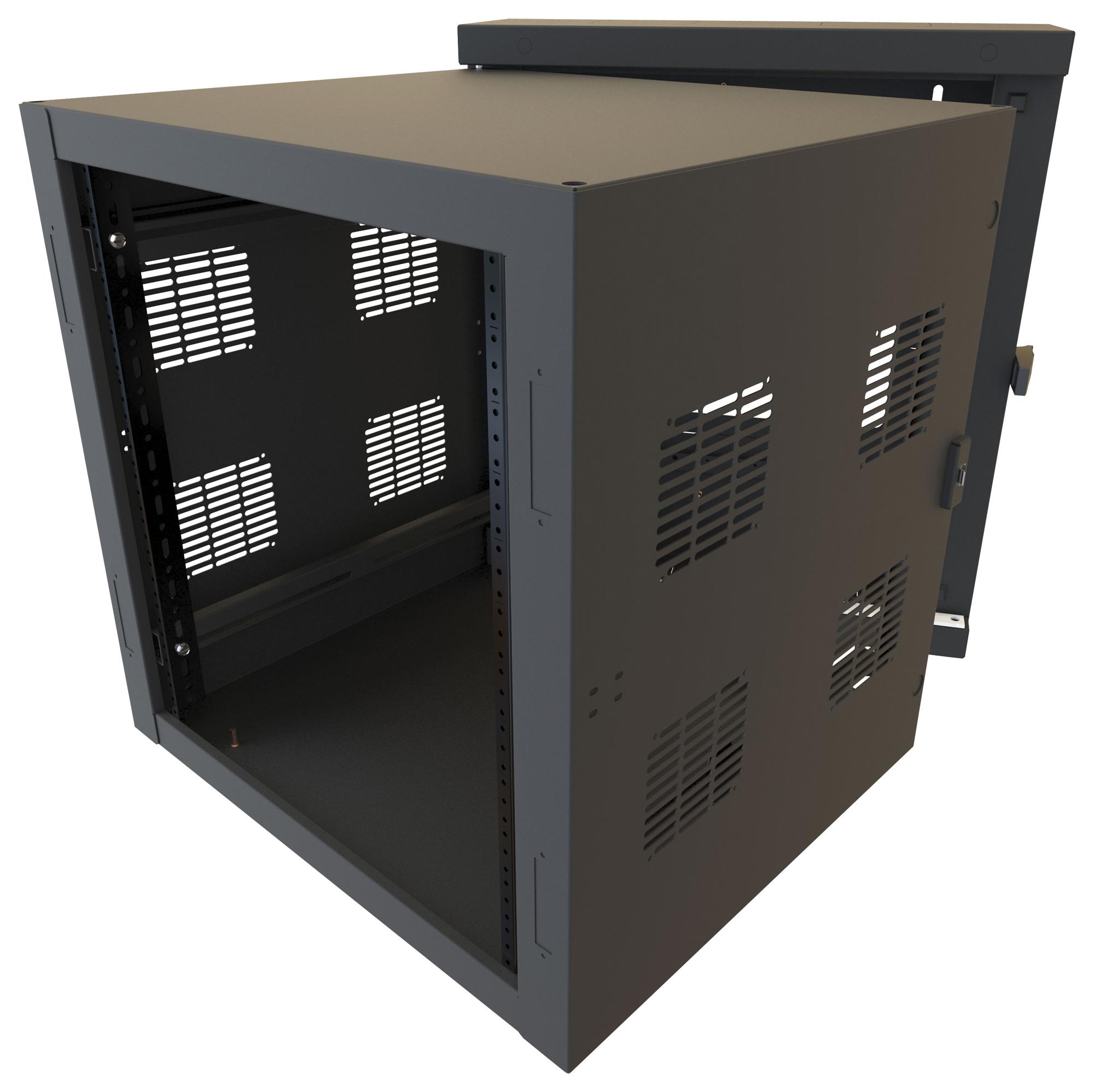

Hammond Manufacturing HWC2427U27BK Wall Mount Rack Cabinet
The Swing-Out Sectional Wall Mount Rack Cabinet from Hammond's HWC Series offers a durable, heavy-duty steel design suitable for supporting up to 300 lbs of equipment. Its modular configuration includes adjustable depth mounting rails, vented side panels for optional cooling, and generous cable management access. Designed for easy installation, it features a rugged powder-coated finish. Optional locking doors and a sealing kit enhance security and dust resistance. Suitable for data centers and communication rooms, the cabinet combines flexibility, strength, and straightforward setup for professional technical environments.
Hammond Manufacturing HWC2427U27BK Wall Mount Rack Cabinet Specifications:
- Material: Steel
- Rear Section Thickness: 14-gauge
- Center Section and Doors Thickness: 16-gauge
- Supports up to 300 lbs static load
- Includes one pair of tapped (10-32) mounting rails
- Adjustable depth mounting rails compliant with EIA standards
- Grounding lugs on top and bottom of sections
- Powder coat finish: Rugged sand-textured black
- Overall dimensions vary by model, typical height 27.81 to 54.06 inches, width 24.68 to 30.68 inches, depth 26.78 to 34.78 inches
- Supports multiple rails and accessories, includes cable management features
- Compatible with optional locking doors, dust sealing kits, and accessories
- UL 2416 rated for weight, TAA and RoHS compliant, intended for professional technical environments
Buy the Hammond HWC2427U27BK – Reliable Wall Mount Rack for Industrial Applications
Purchase the Hammond Swing-Out Sectional Wall Mount Rack Cabinet online today to enjoy easy installation, robust construction, and maximum support for your equipment. Its adjustable rails, cable management, vented panels, and optional locking doors provide flexibility and security for professional environments. Designed for durability, it supports up to 300 lbs and includes features like grounding lugs, modular accessories, and dust-resistant options. Order now to enhance your data center, server room, or communication infrastructure with a trusted, high-quality rack cabinet that delivers performance and reliability every time.
Order your Hammond HWC2427U27BK Swing-Out Sectional Wall Mount Rack Cabinet today and ensure your communication or data center projects benefit from dependable, high-capacity support.
