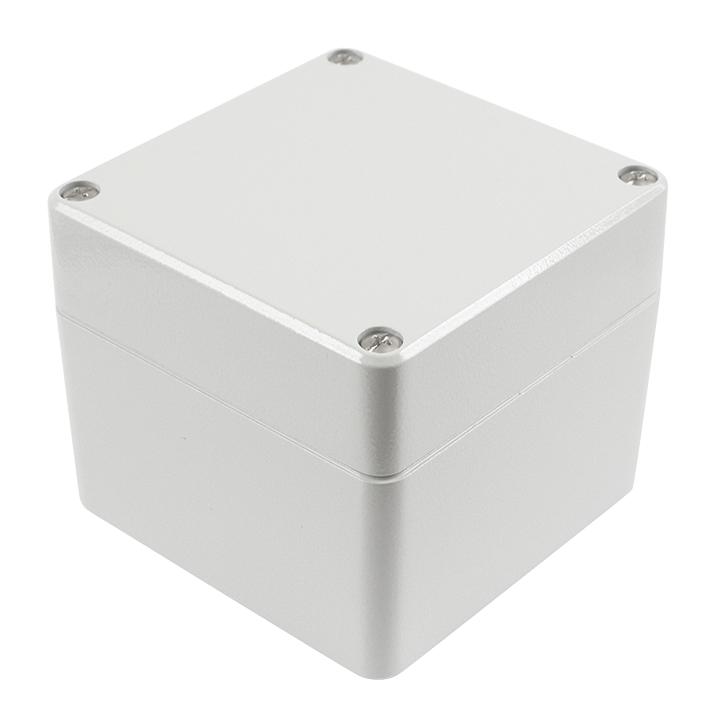

Hammond Manufacturing R100064035 Diecast Aluminum Enclosure
The Type 4X Diecast Aluminum Enclosure from Hammond's R100 Series offers a watertight and corrosion-resistant solution for industrial control equipment. Made from aluminum die-cast G Al SI 12, it features a shallow lid, deep body, captive stainless steel screws, and a neoprene gasket rated for -40°C to +80°C. Its NEMA 4X, IP66, and DIN 40050 protection levels ensure reliable outdoor or harsh environment operation. The enclosure includes external zinc-die-cast mounting feet, internal blind holes, and a single-channel fastening system for efficient installation and maintenance. Suitable for diverse industrial applications requiring durable, sealed enclosures.
Hammond Manufacturing R100064035 Diecast Aluminum Enclosure Specifications:
- Material: Aluminum die-cast G Al SI 12 / DIN 1775
- Protection Rating: NEMA 4X, IP66, DIN 40050
- Temperature Range: -40°C to +80°C
- Gasket Material: Neoprene oil and petrol resistant
- Lid: Shallow lid with captive stainless steel screws
- Body: Deep with internal blind holes
- External Mounting Feet: Zinc-die-cast, turn through 90° with engagement lugs
- Fastening System: Single-channel for enclosure and lid mounting
- Inner Mounting Panel: Zinc-plated steel (optional accessory)
- Surface Finish: Textured polyester powder coat, beige RAL7032 or light gray RAL7035
Buy the Buy Hammond Aluminum Diecast Enclosure Part Number R100064035 Online
Discover the high-quality Hammond R100 Series aluminum enclosure, designed for industrial control applications requiring watertight, corrosion-resistant protection. Crafted from durable aluminum die-cast material, it features a shallow lid, deep body, and stainless steel captive screws for easy access and maintenance. The enclosure offers NEMA 4X, IP66, and DIN 40050 ratings, with a temperature range of -40°C to +80°C, making it ideal for harsh outdoor environments. Its external zinc-die-cast mounting feet and single-channel fastening system optimize installation and serviceability, providing a reliable and long-lasting solution for demanding industrial controls.
Buy Hammond R100064035 aluminum enclosure now and ensure reliable protection for your industrial control equipment with durable, sealed construction.
Frequently Asked Questions
Where can I buy Hammond Manufacturing R100064035?
You can click on the BUY or RFQ button to purchase R100064035 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part R100064035?
You can download the R100064035 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of R100064035?
Hammond Manufacturing
