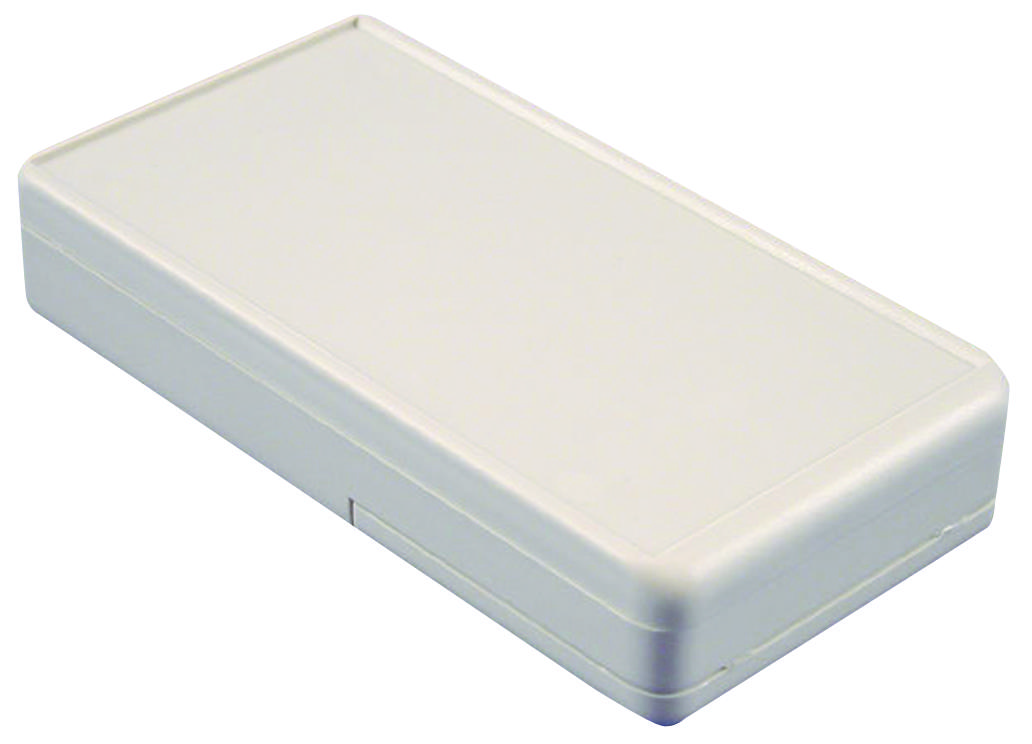

Hammond Manufacturing RH3045 Hand Held Enclosure
The ABS Plastic Hand Held Enclosures from the RH Series by Hammond Mfg. are lightweight, durable, and ergonomically designed for mounting printed circuit boards. They feature a lap joint construction for dust and water splash protection, available in gasketed (IP65 rated) and non-gasketed versions. Made from UL94 HB flame-rated ABS plastic, they include molded-in standoffs and a recessed area for labels or membranes. The gasketed version includes pre-installed gaskets around the top, bottom, and battery door, offering enhanced protection for electronic components in various environments.
Hammond Manufacturing RH3045 Hand Held Enclosure Specifications:
- Material: ABS plastic with UL94 HB flammability rating
- Enclosure Series: RH Series
- Gasketed version: Yes, IP65 rated with factory-installed gaskets around top, bottom, and battery door
- Dimensions: Length 5.12 inches, Width 2.68 inches, Depth 0.98 inches
- Construction: Lap joint for dust and water splash protection
- Design: Ergonomically designed for comfortable handheld use
- Mounting: Includes molded-in PCB standoffs and screw mounting
- Color Options: Black and grey with tough nylon belt clips
- Belt Clamps: Part Number CP-001BK (black), CP-001G (grey)
- Assembly: Includes M3 Philips self-tapping screws
Buy the Hammond Series RH Hand Held Enclosures: RH3045
Purchase the Hammond RH Series ABS plastic hand held enclosure online today to ensure your electronic devices are protected in demanding environments. These lightweight enclosures are ergonomically designed for comfort, feature dust and water splash resistance with optional gasketed seals, and include molded-in standoffs for easy PCB mounting. Available in black and grey with tough nylon belt clips, they suit various applications where reliability and protection are essential. Order now for quick delivery and secure your electronic components professionally.
Buy Hammond RH3045 ABS plastic hand held enclosure now and experience durable, dust and splash resistant protection for your electronic projects.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RH3045?
You can click on the BUY or RFQ button to purchase RH3045 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RH3045?
You can download the RH3045 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RH3045?
Hammond Manufacturing
