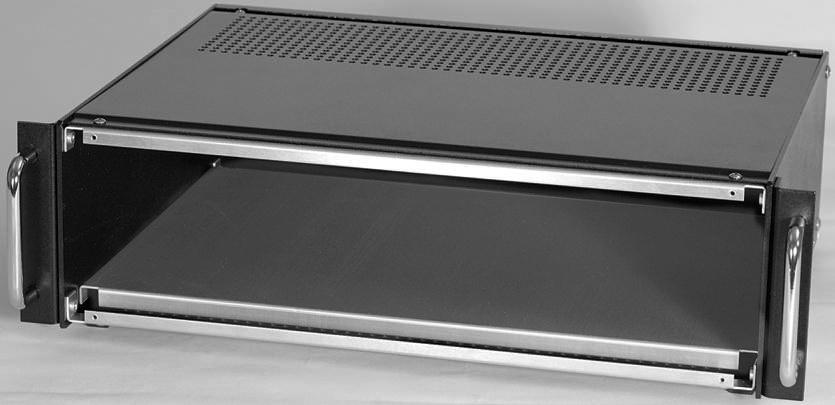

Hammond Manufacturing RMCS9018BK1 Rack Enclosure
The Rack-Mounted Instrument Enclosure from the RMC Series by Hammond Manufacturing offers a lightweight, durable, and versatile solution for protecting electronic equipment in rack-mount or desktop configurations. Constructed from all aluminum 5050 H32, it features a robust design with panel thicknesses of 0.125" for side panels and rack brackets, 0.064" for front and rear panels, and 0.062" for top and bottom panels. Easily accessible with only four screws needed for internal access, it includes hardware, optional internal chassis, and accessories for flexible installation. RoHS compliant and shipped unassembled for convenience.
Hammond Manufacturing RMCS9018BK1 Rack Enclosure Specifications:
- Material: Aluminum 5050 H32
- Side Panels & Rack Mount Brackets: 0.125" (3.2 mm) thick
- Front & Rear Panels: 0.064" (1.6 mm) thick
- Top & Bottom Panels: 0.062" (1.6 mm) thick
- Finish: Rugged satin texture, black powder paint
- Includes: Top, bottom, side panels, front & rear panels, hardware, rack brackets, self-adhesive rubber feet
- Design: Knockdown, unassembled for shipping and handling
- Hole & Mounting Options: Rack ears, internal chassis, mounting flanges available
- Grounding: Not auto-grounded due to powder coat finish, user to determine grounding method
- Shipping: Unassembled, RoHS compliant, manufactured in North America
Buy the Hammond Series RMC Rack-Mounted Enclosure: RMCS9018BK1
Shop the Hammond RMC Series Rack Enclosure RMCS9018BK1 online today. Designed with all-aluminum construction for lightweight strength, it provides excellent electronic protection with easy access via minimal screws. Suitable for 1U rack mounting, it includes hardware, mounting brackets, and optional internal chassis for customizable setups. Featuring a rugged black powder coat finish and shipped unassembled, this enclosure ensures easy handling, reliable performance, and compliance with RoHS standards. Perfect for professional electronics and instrumentation applications.
Get Hammond RMC Series RMCS9018BK1 today—built for durability, easy access, and flexible rack-mount or desktop use.
