Hammond Manufacturing RMCV19038BK1 Rack Mount Enclosure

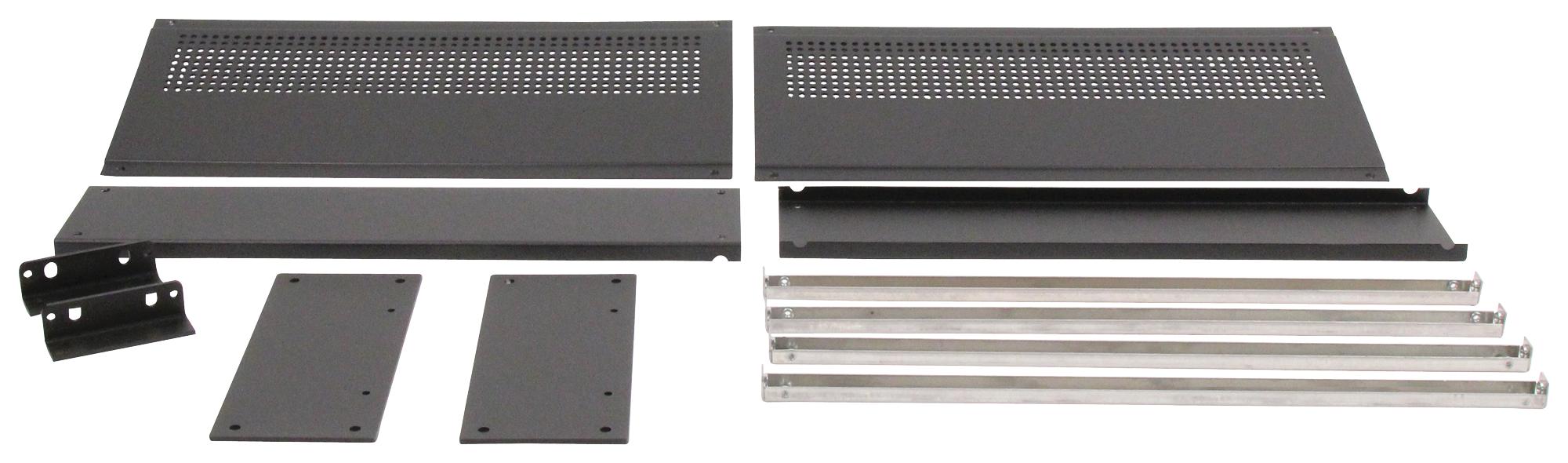

The RMCV19038BK1 is a 2U vented rack chassis made entirely of lightweight aluminum, ideal for versatile industrial applications. It features a durable satin black powder-coated finish, with side panels and rack-mount brackets 0.125 inches thick, and front and rear panels 0.064 inches thick. The top and bottom panels are 0.062 inches thick. Designed for easy installation, it allows internal access by removing only four screws from any of its six panels. The enclosure includes all hardware, rubber self-adhesive feet, and mounting brackets. Its knockdown, unassembled packaging simplifies handling and shipping, and grounding options are customizable due to the powder coat finish.
Hammond Manufacturing RMCV19038BK1 Rack Mount Enclosure Specifications:
- Material: Aluminum (Type 5050 H32)
- Finish: Satin texture, black powder paint
- Side Panels & Rack Mount Brackets Thickness: 0.125 inches (3.2 mm)
- Front & Rear Panels Thickness: 0.064 inches (1.6 mm)
- Top & Bottom Panels Thickness: 0.062 inches (1.6 mm)
- Overall Dimensions: 17.00 inches width, 13.00 inches depth, 3U height (5.25 inches usable height)
- Weight: Light, designed for easy handling and shipping
- Access: Internal components accessible by removing 4 screws from any of 6 panels
- Mounting: Can be used with or without rack-mount ears or brackets
- Includes: Hardware, rubber self-adhesive feet, mounting brackets
- Grounding: Not grounded to frame; grounding method customizable
- Application: Industrial electronics, control systems, instrumentation
Buy the Hammond RMCV19038BK1 – Reliable Rack-Mount Enclosure for Industrial Applications
Purchase the Hammond RMCV19038BK1 rack enclosure online to enjoy a lightweight, durable, and versatile solution for your industrial electronic needs. Designed with all aluminum construction, it offers easy access to internal components with minimal screw removal. Its knockdown, unassembled design ensures straightforward handling and shipping. The enclosure features a satin black powder-coated finish for durability and corrosion resistance, includes all necessary hardware, rubber feet, and mounting brackets. Perfect for control systems, instrumentation, or electronics requiring reliable, professional-grade rack mounting.
Get Hammond RMCV19038BK1 today—built for versatile industrial electronics and easy customization.
