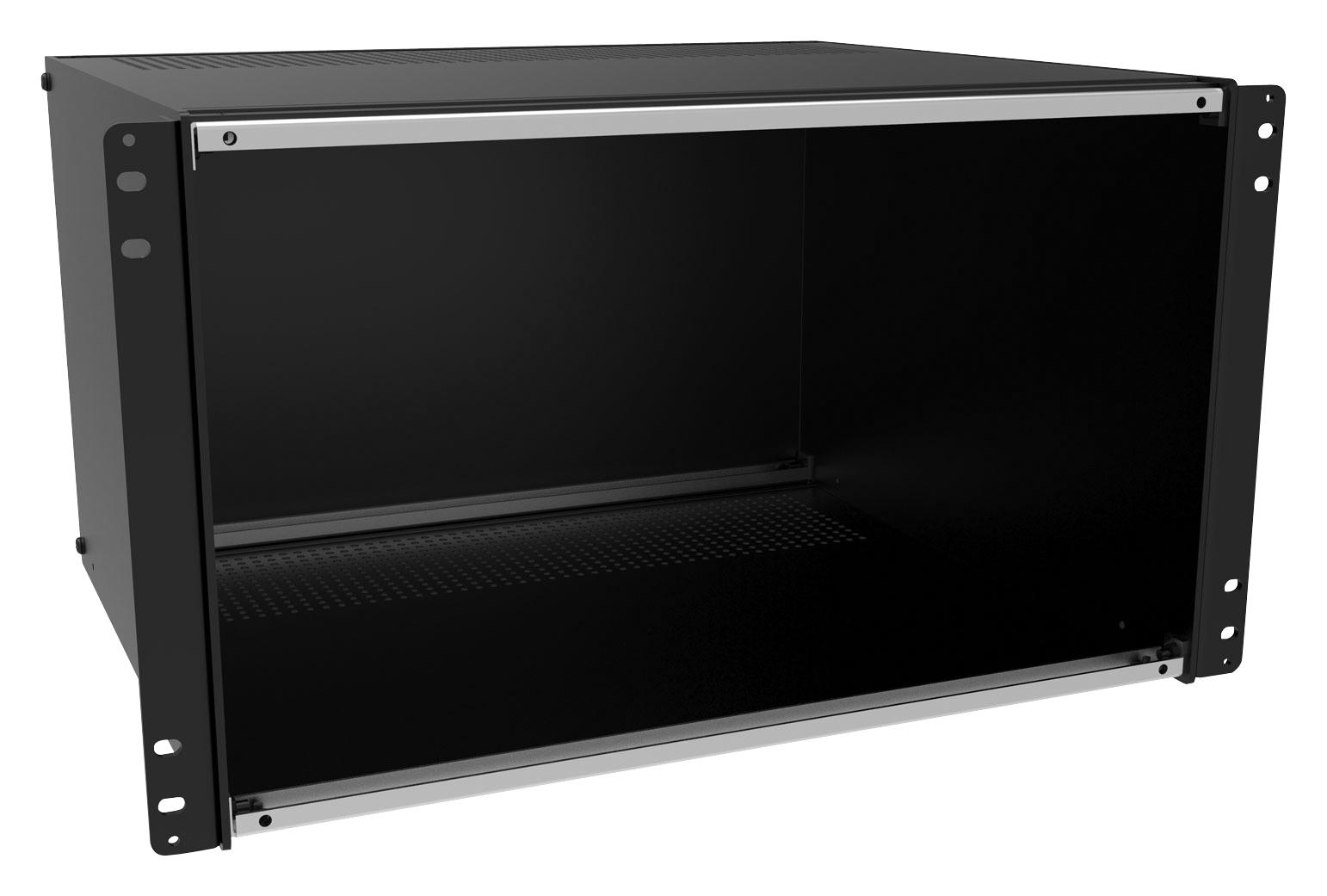

Hammond Manufacturing RMCV9018BK1 Rack-Mounted Enclosure
The RMC Series Rack-Mounted Instrument Enclosure by Hammond Manufacturing provides a durable, lightweight aluminum design suitable for 19-inch rack or desktop applications. Constructed with 0.125" thick side panels and 0.064" thick front and rear panels, it features easy assembly, internal access with only 4 screws, and optional internal aluminum chassis. Finished in rugged satin black powder paint, it includes all hardware, rack mount brackets, and self-adhesive feet. Its modular design allows for easy installation of electronics, ideal for industrial, instrumentation, and control applications, and is RoHS compliant.
Hammond Manufacturing RMCV9018BK1 Rack-Mounted Enclosure Specifications:
- Material: Aluminum 5050 H32
- Side Panels Thickness: 0.125" (3.2 mm)
- Front & Rear Panels Thickness: 0.064" (1.6 mm)
- Top & Bottom Panels Thickness: 0.062" (1.6 mm)
- Finish: Rugged satin texture black powder paint
- Overall Dimensions: 17.00" W x 13.00" D x 5.25" H (for selected model)
- Rack Units: 3U
- Mounting: Suitable for rack mounting or desktop use
- Assembly: Knockdown, ships unassembled with hardware
- Internal Chassis: Optional aluminum panel RMP1913
- Grounding: Not internally grounded due to powder coat finish, grounding method user determined
- RoHS Compliance: Yes
Buy the Hammond RMCV9018BK1 – Reliable Rack-Mount Enclosure for Industrial Applications
Enhance your industrial projects with the lightweight, durable aluminum rack enclosure from Hammond Manufacturing. Designed for 19-inch rack or desktop use, it offers easy internal access, modular assembly, and rugged finish for reliable protection of electronic components. Suitable for instrumentation, control systems, and industrial automation, it includes all necessary hardware and mounting brackets. Its versatile design and optional internal chassis make it ideal for technicians and engineers seeking a high-quality, RoHS compliant enclosure that ensures dependable performance and easy installation in demanding environments.
Order your Hammond Series RMCV9018BK1 rack enclosure today and provide your electronics with durable and flexible industrial protection.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RMCV9018BK1?
You can click on the BUY or RFQ button to purchase RMCV9018BK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RMCV9018BK1?
You can download the RMCV9018BK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RMCV9018BK1?
Hammond Manufacturing
