Hammond Manufacturing RZ0223C Enclosure

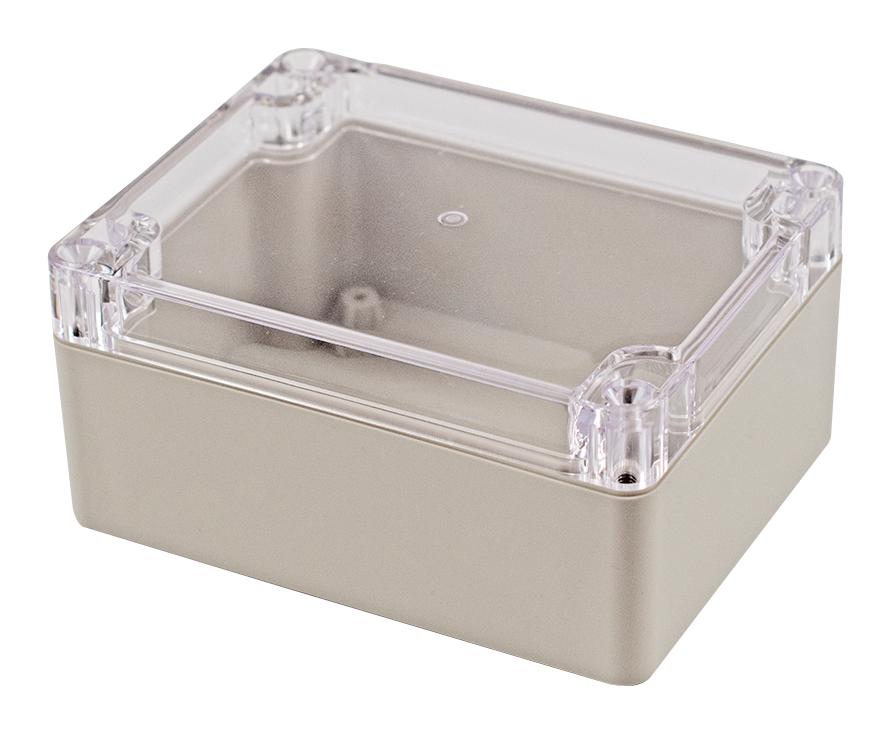

The Hammond RZ0223C is a WaterTight ABS and polycarbonate enclosure designed for indoor and outdoor applications. It features a gasketed lid with two-piece tongue & groove construction for protection against oil, dust, and water ingress. Suitable for mounting printed circuit boards or DIN rail mounted components, it offers IP65 protection, corrosion resistance, and ease of wall mounting with outside gasket perimeter holes. The enclosure is available in light gray polycarbonate with a clear lid, measuring 222 mm length, 146 mm width, and 75 mm depth, making it ideal for industrial electronics and control systems.
Hammond Manufacturing RZ0223C Enclosure Specifications:
- Material: ABS plastic, Polycarbonate (outdoor use)
- Color: Light gray (Polycarbonate), RAL7035; Beige ABS, RAL1013
- Temperature Rating: -40°C to +130°C (Polycarbonate); -30°C to +80°C (ABS)
- Flammability Rating: UL-94HB
- Ingress Protection: IP65
- Lid: Gasketed, two-piece tongue & groove for water and dust protection
- Mounting: Internal PCB or DIN rail, wall-mount holes outside gasket perimeter
- Lid Options: Opaque or Clear Polycarbonate
- Screws: Stainless steel into inserts for durability
- Available Sizes: Various, with model RZ0223C measuring 222 mm x 146 mm x 75 mm
- Application: Suitable for industrial electronics, control panels, outdoor equipment
Buy the Hammond RZ0223C – Reliable Enclosure for Industrial Applications
Purchase the Hammond RZ0223C enclosure online today for your industrial electronics and control systems. Designed with IP65 protection and gasketed lids, perfect for indoor and outdoor use. Features a corrosion-resistant polycarbonate material with a clear lid option, dimensions of 222 mm by 146 mm by 75 mm, and compatibility with PCB mounting or DIN rails. Easy to wall-mount via outside holes, stainless steel screws ensure durability, making it ideal for harsh environments demanding reliable protection and long-term performance.
Get Hammond RZ0223C today—built for precision and long-lasting durability in industrial and outdoor environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0223C?
You can click on the BUY or RFQ button to purchase RZ0223C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0223C?
You can download the RZ0223C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0223C?
Hammond Manufacturing
