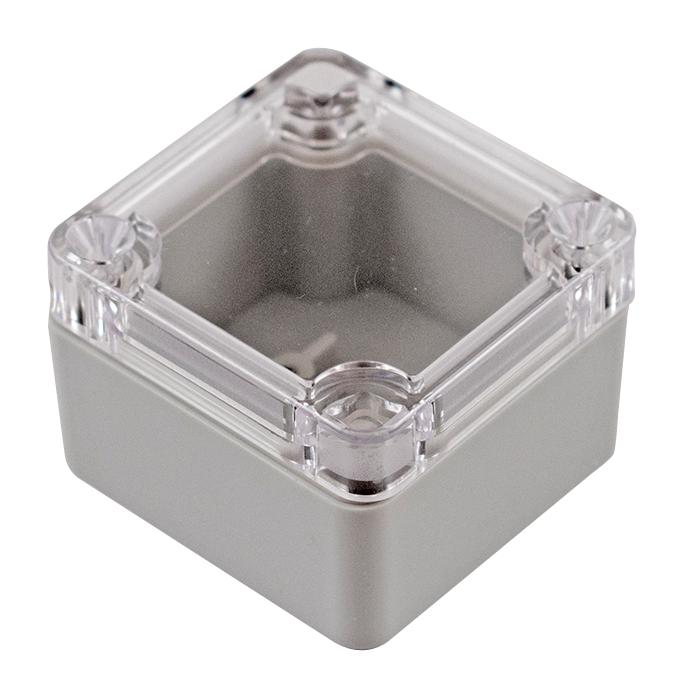

Hammond Manufacturing RZ0250C WaterTight Enclosure
The Hammond RZ Series WaterTight ABS and Polycarbonate Enclosures are designed for indoor and outdoor use, offering IP65 protection against dust and water. Made from durable ABS or polycarbonate materials, these enclosures are ideal for mounting printed circuit boards and DIN rail components. They feature gasketed lids with two-piece tongue and groove construction, self-captivating lid screws, and wall-mounting points outside the gasket perimeter. Clear polycarbonate lids are available, providing easy inspection and accessibility in various sizes suitable for diverse electronic project needs.
Hammond Manufacturing RZ0250C WaterTight Enclosure Specifications:
- Material: ABS plastic or polycarbonate
- Color: RAL1013 (ABS), RAL7035 (Polycarbonate)
- Flammability Rating: UL-94HB
- Temperature Range: -30°C to +80°C (ABS), -40°C to +130°C (Polycarbonate)
- Lid Construction: Gasketed, two-piece tongue & groove
- Mounting: Wall-mount via outside gaskets, internal mounting for PCB and DIN rail
- Screws: Stainless steel into stainless steel inserts, self-captivating lid screws
- Protection: IP65 against dust and water ingress
- Dimensions: Vary by model, e.g., RZ0250C: 52x50x35mm, RZ0362: 82x80x55mm, RZ0218C: 222x146x75mm
- Available Styles: Beige ABS, Light Gray Polycarbonate, with clear polycarbonate lids
Buy the Hammond Series RZ WaterTight Enclosures: RZ0250C
Secure your electronic projects with Hammond Series RZ WaterTight Enclosures. Designed for indoor and outdoor use, these enclosures offer IP65 protection against dust, water, and environmental factors. Made from durable ABS or polycarbonate, they feature gasketed lids, mounting options outside the gasket perimeter, and stainless steel screws for secure assembly. The enclosures support internal mounting for printed circuit boards and DIN rails, making them ideal for industrial, outdoor, and electronic applications. Choose from various sizes and styles, including clear polycarbonate lids for easy inspection.
Order your Hammond Series RZ0250C WaterTight Enclosure today and ensure your electronics are protected with reliable IP65-rated casing.
