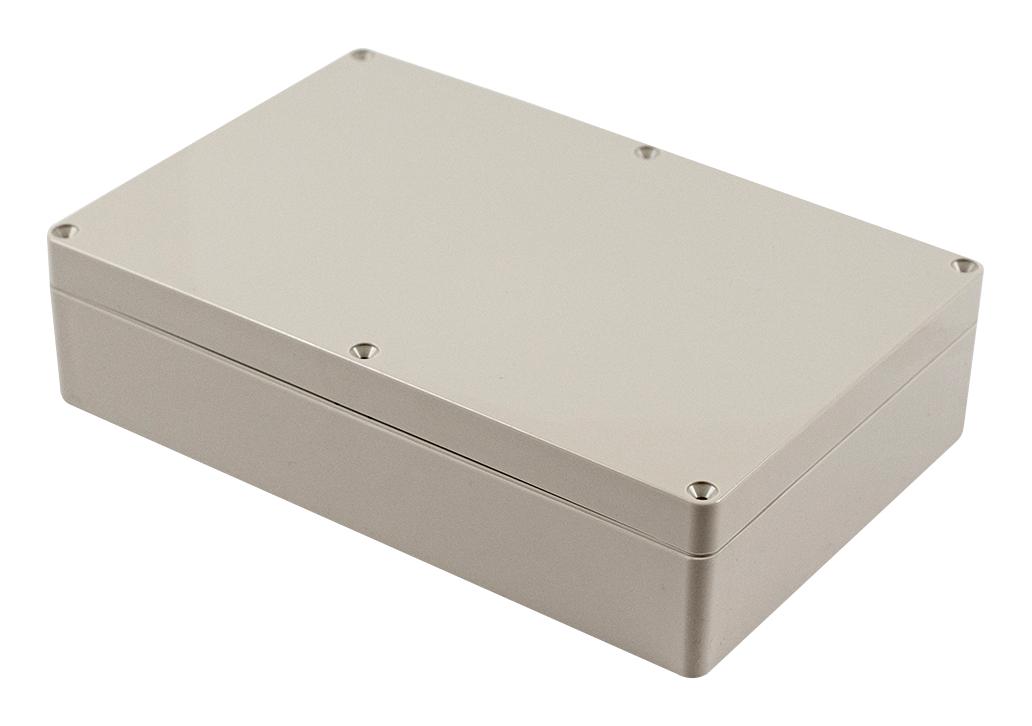

Hammond Manufacturing RZ0317 WaterTight Enclosure
The RZ Series WaterTight ABS and Polycarbonate Enclosures by Hammond Manufacturing provide durable, IP65-rated protection for electronic components. Designed for indoor and outdoor use, they feature gasketed, two-piece lids with tongue and groove construction to protect against oil, dust, and water ingress. Available in multiple sizes with clear or opaque lids, these enclosures are ideal for mounting printed circuit boards or DIN rail-mounted components. Wall mounting is facilitated outside gasket perimeters, and stainless steel screws ensure corrosion resistance and secure assembly.
Hammond Manufacturing RZ0317 WaterTight Enclosure Specifications:
- Material: ABS plastic, UL flammability UL-94HB, Color: RAL1013, Temperature: -30°C to +80°C
- Material: Polycarbonate, UL flammability UL-94HB, Color: RAL7035, Temperature: -40°C to +130°C
- Protection Rating: IP65, Enclosure options include opaque or clear polycarbonate lids
- Construction: Gasketed lid with two-piece tongue & groove, Self-captivating lid screws, Wall-mountable with external mounting holes
- Dimensions vary across models, with sizes including length, width, and depth specified per model, such as 115 x 65 x 40 mm to 222 x 146 x 75 mm
- Suitable for mounting printed circuit boards and DIN rail components, internal mounting points provided
- Corrosion-resistant stainless steel screws with stainless steel inserts ensure secure assembly
Buy the Buy Hammond WaterTight Enclosure Part Number RZ0317 Online
Purchase the Hammond WaterTight Enclosure RZ0317 online today to ensure your electronic components are protected from water, dust, and oil. With IP65-rated sealing, gasketed lids, and easy wall-mount options, this durable enclosure is suitable for both indoor and outdoor environments. Its robust construction and corrosion-resistant stainless steel screws guarantee secure fitting and long-lasting performance. Whether for mounting printed circuit boards or DIN rail-mounted parts, buy online now and enjoy prompt delivery, reliable quality, and the best value for your electronic enclosures.
Buy Hammond RZ0317 enclosure now and experience unmatched protection for your electronic components with IP65 water-tight sealing and durable construction.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0317?
You can click on the BUY or RFQ button to purchase RZ0317 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0317?
You can download the RZ0317 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0317?
Hammond Manufacturing
