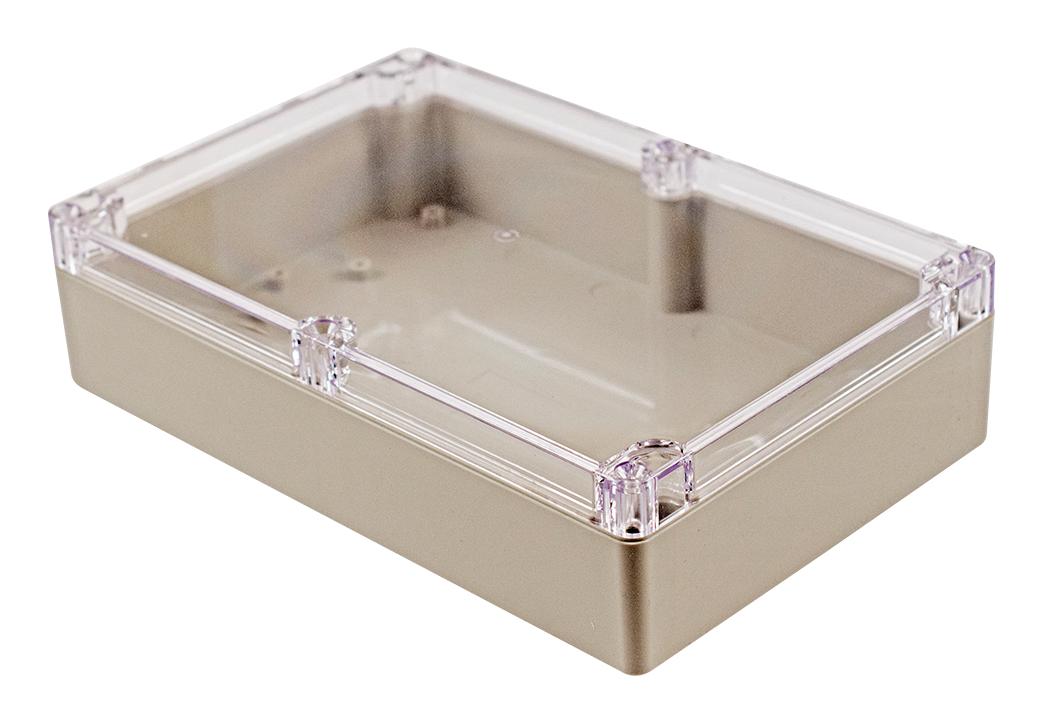

Hammond Manufacturing RZ0317C WaterTight Enclosure
The RZ0317C is a WaterTight ABS and polycarbonate enclosure designed for versatile electrical and electronic applications. Its IP65-rated gasketed lid provides secure protection against oil, dust, and water intrusion. Suitable for indoor and outdoor use, it features a durable design with a clear polycarbonate lid, stainless steel screws, and easy wall-mounting. Ideal for mounting printed circuit boards or DIN rail components, this enclosure combines high-quality materials with practical features for reliability in various environments, combining safety, durability, and ease of installation.
Hammond Manufacturing RZ0317C WaterTight Enclosure Specifications:
- Material: ABS Plastic, Polycarbonate
- Flammability Rating: UL-94HB
- Color: RAL1013 (Beige), RAL7035 (Light Gray)
- Temperature Range: -30°C to +80°C (ABS), -40°C to +130°C (Polycarbonate)
- Ingress Protection: IP65
- Lid: Gasketed, two-piece tongue & groove construction, clear or opaque options
- Mounting: Wall-mount with outside gasket perimeter holes
- Screws: Stainless steel screws into stainless steel inserts
- Available Styles: Four styles with options for clear polycarbonate lids
- Dimensions: RZ0317C measures approximately 222 mm length, 146 mm width, and 55 mm depth
- Suitable for mounting printed circuit boards or DIN rail-mounted components
- Constructed for durability, easy installation, and environmental protection
Buy the Buy Hammond WaterTight ABS & Polycarbonate Enclosure Part Number RZ0317C Online
Purchase the Hammond WaterTight series RZ0317C enclosure online today and experience a robust, IP65-rated solution ideal for protecting electronic components indoors and outdoors. Its gasketed lid, stainless steel screws, and versatile mounting options make it perfect for PCB and DIN rail mounting. Constructed from durable ABS plastic and polycarbonate, it offers excellent temperature resistance from -40°C to +130°C and UL flammability safety. Secure your electronics with this easy-to-install, weatherproof enclosure that guarantees long-lasting protection and superior performance in demanding environments.
Order your Hammond Series RZ0317C WaterTight enclosure today and ensure reliable protection for your electronic projects with durable, IP65-rated quality.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0317C?
You can click on the BUY or RFQ button to purchase RZ0317C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0317C?
You can download the RZ0317C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0317C?
Hammond Manufacturing
