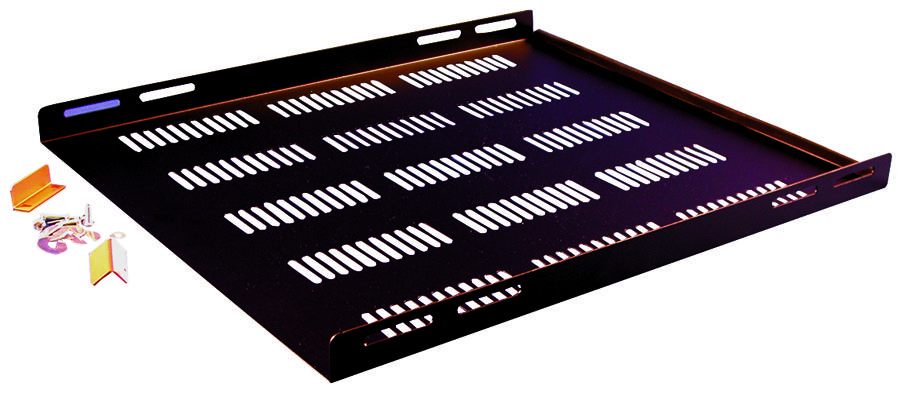

Hammond Manufacturing RZVS1926BK1 Heavy Duty Mounting Shelf
The RZVS1926BK1 is a four-post mounting zero-space fixed shelf made from 14-gauge steel with a textured powder-coated finish. It eliminates front rail mounting and front rack space, ensuring unobstructed front panel access. The shelf is vented for heat dissipation and features a reinforced rear lip with a rubber channel to prevent equipment scratching and cable chafing. It includes adjustable equipment stops and sides folded up for easy installation from above. Suitable for industrial environments, it offers robust support and flexible mounting options across various rail depths.
Hammond Manufacturing RZVS1926BK1 Heavy Duty Mounting Shelf Specifications:
- Material: 14-gauge steel
- Finish: Textured powder coating
- Overall Dimensions: 17.75 inches width, depth varies (17.84 deep for part RZVS1918BK1, 20.84 for RZVS1921BK1, 25.84 for RZVS1926BK1, 30.84 for RZVS1931BK1)
- Construction: Heavy-duty, vented design
- Rear Lip: Folded for strength and equipment retention
- Rubber Channel: Cover on rear lip to prevent scratching and cable chafing
- Sides: Folded up with slots for adjustable mounting
- Load Rating: Tested to nearly double 170 lbs suggested capacity
- Compatibility: Requires two pairs of combination rails, with optional CPRSA rail adapters for square hole rails
- Compliance: RoHS and REACH
- Manufactured in: North America
Buy the Hammond Series Fixed Shelf: RZVS1926BK1
Upgrade your rack system with the Hammond Heavy Duty Mounting Shelf RZVS1926BK1, crafted from robust 14-gauge steel with a textured powder-coat finish. Its vented design ensures optimal heat dissipation, preventing overheating of equipment. Reinforced with a folded rear lip covered in a rubber channel, it provides extra strength and prevents scratching or cable chafing. Adjustable sides with slots enable flexible installation across various rail depths. Perfect for industrial environments, this shelf holds up to nearly double 170 lbs, combining durability with versatility for your technology and equipment storage needs.
Order your Hammond Series Fixed Shelf RZVS1926BK1 today and enhance your industrial rack system with durable, easy-to-install shelving solutions.
