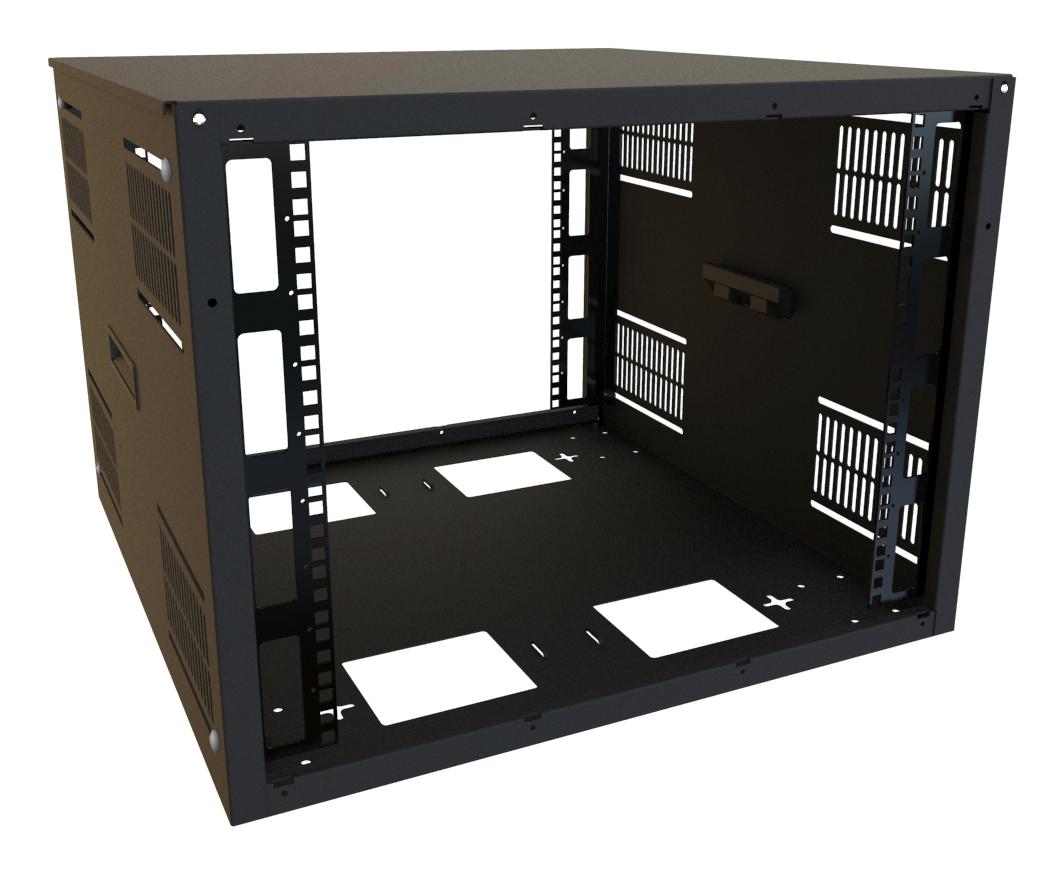

Hammond Manufacturing SDC249U24BK Rack Cabinet
The SDC249U24BK is a high-capacity wall and floor rack cabinet designed for secure equipment mounting in limited spaces. Made with 16-gauge steel and finished in sand-textured black powder paint, it supports up to 9U of rack units with dimensions of 16.75 inches in height, 24 inches in width, and 24.5 inches in depth. The cabinet features removable cover panels, cable management lances, and optional locking doors for enhanced security. It supports various mounting configurations, including wall, ceiling, or freestanding setups, with a robust load rating up to 800 lbs for freestanding use.
Hammond Manufacturing SDC249U24BK Rack Cabinet Specifications:
- Material: 16-gauge steel
- Finish: Sand textured black powder paint
- Rack Units: 9U
- Overall Dimensions: Height 16.75 inches, Width 24.00 inches, Depth 24.50 inches
- Usable Dimensions: Height 15.75 inches, Width 19.00 inches, Depth 22.50 inches
- Maximum Load Capacity: 800 lbs (362 kg) for freestanding mounting
- Mounting Options: Wall, ceiling, and freestanding with casters
- Included Accessories: Removable cover, cable management lances, lockable doors
- Additional Features: Grounding studs, optional cable/fan door, conduit/fan panel mounts
- Certifications: TAA compliant, RoHS compliant, Made in North America
Buy the Buy Hammond Wall and Floor Rack Cabinet Part Number SDC249U24BK Online
Enhance your equipment security and organization with this heavy-duty rack cabinet designed for limited spaces. Made from durable steel with a textured black finish, it supports up to 9U of gear with a maximum load of 800 lbs when freestanding. Features include removable panels, secure lockable doors, cable management, and versatile mounting options—wall, ceiling, or free-standing with optional casters. Ideal for data centers, network rooms, and specialized applications requiring robust, space-efficient equipment housing.
Order your Hammond Series249U24BK rack cabinet today and ensure reliable security and versatile mounting options for your equipment in limited spaces.
