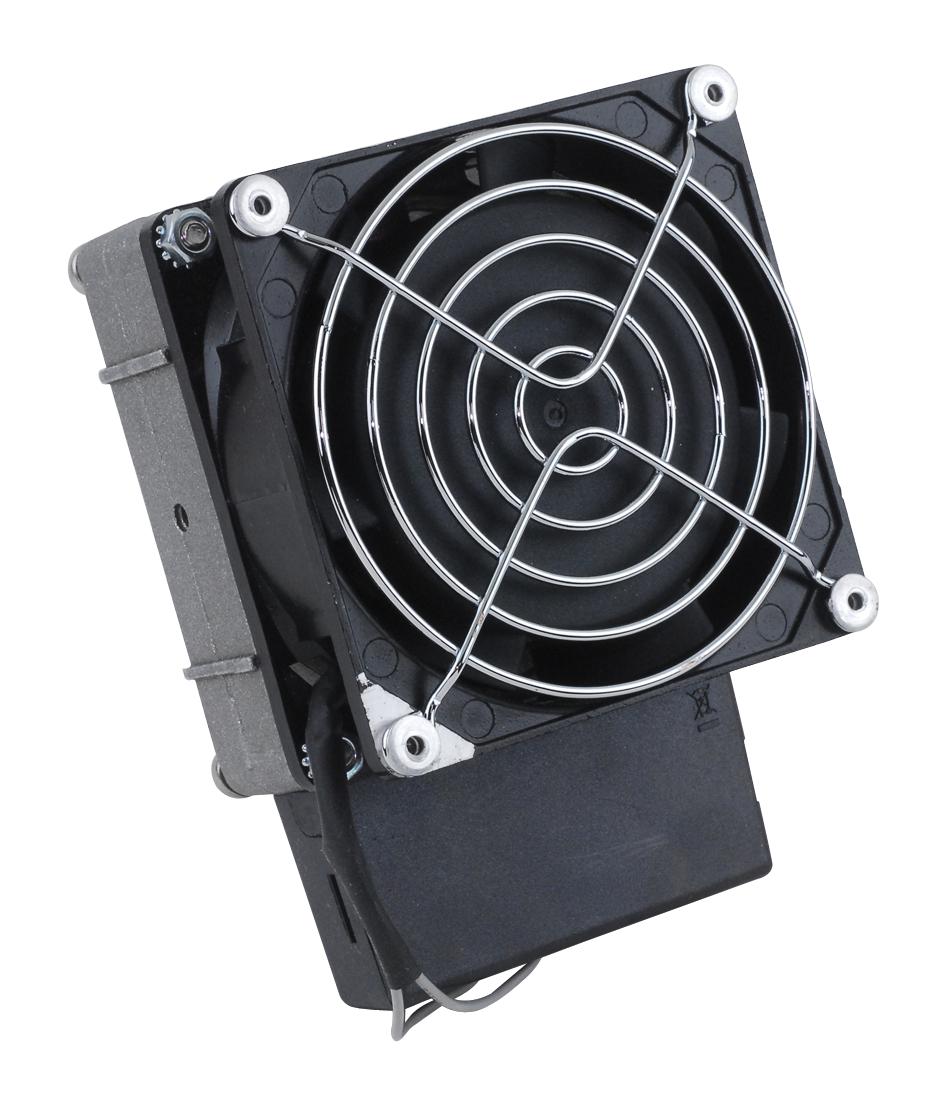

Hammond Manufacturing SHV031149 Control Panel Heater
The SHV Series control panel heater from Hammond Manufacturing is designed for applications requiring higher heating capacities and internal forced air circulation within limited spaces. These compact, reliable heaters feature an internal axial fan with ball bearings, die-cast aluminum bodies, and cartridge heating elements. Suitable for maintaining minimum temperatures or preventing condensation in electrical enclosures, they operate on AC 110-120 V with adjustable airflow up to 63 CFM. Certified by UL, CUL, and CE, these durable heaters offer easy DIN rail mounting and long lifespan of approximately 30,000 hours at 68°F ambient temperature.
Hammond Manufacturing SHV031149 Control Panel Heater Specifications:
- Power: 100 W, 150 W, 200 W, 300 W, 400 W
- Operating Voltage: AC 110-120 V, 50/60 Hz
- Current: 0.89 A (100 W), 1.3 A (150 W), 1.79 A (200 W), 2.62 A (300 W), 3.45 A (400 W)
- Maximum Temperature: 250°F/120°C (100W, 200W), 320°F/160°C (150W, 300W), 360°F/180°C (400W)
- Air Flow: 20 CFM (100W, 150W), 63 CFM (200W, 300W, 400W)
- Fan: Axial, ball bearing
- Durability: Approximately 30,000 hours at 68°F ambient temperature
- Heating Element: Cartridge heater
- Body Material: Die-cast aluminum
- Connection: 5 pole terminal for 14 AWG
- Mounting: Clip mounting on 35 mm DIN rails included
- Protection Class: 1, grounded at 1250 V
- Certifications: UL Recognized, CUL Recognized, CE
Buy the Hammond Series SHV Control Panel Heater: SHV031149
Order the Hammond Series control panel heater SHV031149 online today to ensure your electrical enclosures are protected from condensation and overheating. This high-quality heater offers adjustable airflow, durable die-cast aluminum construction, and UL, CUL, and CE certification for safe, reliable operation. Its compact design allows easy clip mounting on 35 mm DIN rails, making installation quick and straightforward. With a lifespan of approximately 30,000 hours at 68°F ambient temperature, this heater guarantees long-lasting performance for industrial and electrical applications. Get yours now for efficient enclosure maintenance and protection.
Buy Hammond Series SHV control panel heater SHV031149 now and experience reliable, efficient heating with easy DIN rail installation and long lifespan.
