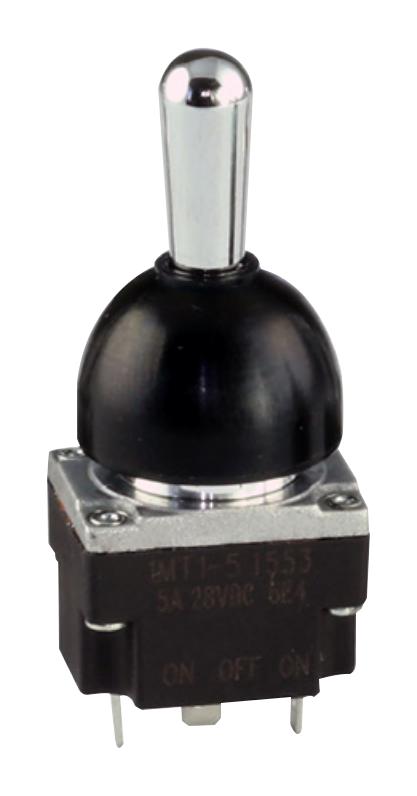

Honeywell 1MT13 Miniature Toggle Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged, cost-effective, and suitable for demanding outdoor environments. They feature high sealing levels, with IP67/IP68 ratings, and are designed to withstand vibration, temperature extremes, dust, and water splashes. These switches operate reliably with a spring-loaded mechanism providing tactile feedback, and have an electrical life cycle of up to 60,000 cycles. Available in various circuitry configurations, they are ideal for control panels in heavy equipment like cranes, boom trucks, and remote control boxes, ensuring durability and longevity in industrial applications.
Honeywell 1MT13 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Actuators: Industry standard polished lever
- Action: 2- or 3-position; momentary and maintained
- Mounting: Panel mount with 15/32 inch bushing
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Terminations: Solder
- Contacts: Silver alloy, gold plated
- Amp Rating: 5A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold contacts
- Electrical Life: Up to 60,000 cycles (silver alloy), 25,000 cycles (gold-plated)
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA for 1 minute
- Salt Spray: 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2 hours each direction
- Solder Ability: IEC 61058-1, 3 seconds at 350°C ±10°C
- Certifications: UL recognized, CE certified
- Dimensions: 26.7 mm H x 20 mm W x 15 mm D (1.05 in H x 0.79 in W x 0.59 in D)
Buy the Honeywell 005437 – Reliable Toggle Switch for Industrial Applications
Order Honeywell 005437 miniature toggle switch online today and ensure your control systems operate reliably in harsh environments. Designed to withstand vibration, temperature extremes, dust, and water ingress, this high-sealing IP67/IP68 rated switch offers a long electrical and mechanical life, reducing downtime. Its versatile circuitry options, robust construction, and certifications make it ideal for demanding applications like cranes, boom trucks, and remote control panels. Invest now for durable performance and seamless integration into your industrial control solutions!
Buy Honeywell 005437 miniature toggle switch now and experience unmatched reliability and long service life in heavy-duty industrial environments.
Frequently Asked Questions
Where can I buy Honeywell 1MT13?
You can click on the BUY or RFQ button to purchase 1MT13 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 1MT13?
You can download the 1MT13 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 1MT13?
Honeywell
