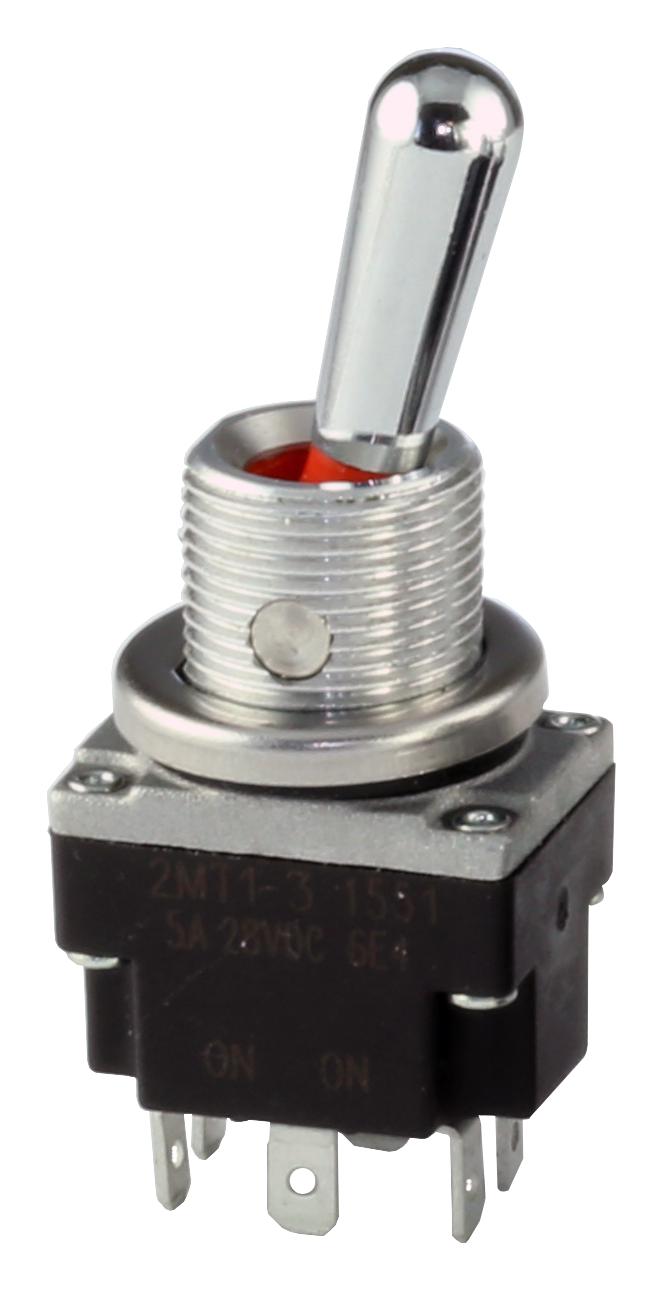

Honeywell 2MT17 Miniature Toggle Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged and cost-effective, designed for demanding environments with vibration, temperature extremes, dust, and water ingress. Featuring seal between toggle and bushing, these switches support outdoor use and gloved-hand operation with metal or plastic actuators. They offer high sealing levels (IP67/IP68), up to 60,000 electrical cycles, and various circuit options (SPST, SPDT, DPST, DPDT). Compact size and sealed construction make them ideal for outdoor equipment, remote control, and space-constrained panels, ensuring long-term reliability in harsh conditions.
Honeywell 2MT17 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Temperature Range: -40 °C to 85 °C
- Actuators: Industry standard polished lever
- Action: 2- or 3-position, momentary and maintained
- Mounting: Bushing 15/32 in (0.47 in)
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Terminations: Solder
- Contacts: Silver alloy, gold-plated
- Amp Rating: 5A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold contacts
- Electrical Life: Up to 60,000 cycles
- Mechanical Life: 100,000 cycles
- Dielectric Strength: 500 Vdc, 10 mA/1 min between open terminals
- Salt Spray Resistance: 96 hours without red rust
- Vibration: 10 Hz to 500 Hz, 10 G, two-hour duration
- Solder Ability: UL 61058-1, 350°C ±10°C, 3 seconds
- Approvals: UL recognized, CE certified
Buy the Honeywell Series MT Toggle Switch: 2MT17
Discover the rugged reliability of the Honeywell Series MT miniature toggle switch, designed for outdoor and demanding environments. With sealed IP67/IP68 protection, this switch resists water and dust ingress, ensuring long operational life. Perfect for remote control panels, cranes, concrete pumps, and space-constrained applications, it supports multiple circuit configurations and up to 60,000 electrical cycles. Its durable construction with high-quality contacts guarantees consistent performance and minimal maintenance, making it the ideal choice for industrial equipment and outdoor installations that require dependable switching under harsh conditions.
Order your Honeywell Series MT 2MT17 toggle switch today and ensure reliable, outdoor-rated switching for your demanding industrial and outdoor projects.
Frequently Asked Questions
Where can I buy Honeywell 2MT17?
You can click on the BUY or RFQ button to purchase 2MT17 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 2MT17?
You can download the 2MT17 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 2MT17?
Honeywell
