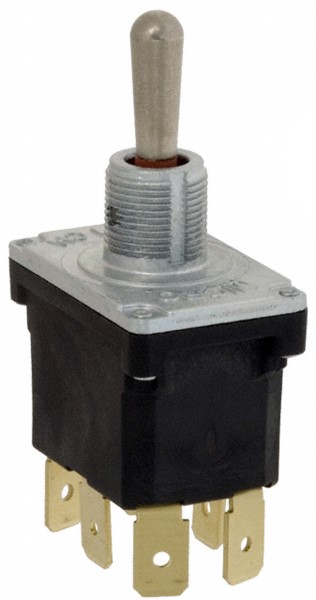

Honeywell 32NT9121 Commercial Toggle Switch
Honeywell MICRO SWITCH™ NT Series toggle switches are robust and cost-effective solutions for a wide range of commercial applications. Featuring a seal between the toggle lever and bushing, and between the cover and case, these switches are well-suited for environments exposed to vibration, temperature extremes, dust, and water. They offer various features like optional “Easy Start” threaded bushings, panel stand-offs with O-ring seals, and locking levers to prevent unintended actuation. Available in multiple configurations, including step-base and flat-base styles, and with various termination options, the NT Series provides versatility and reliability for demanding industrial and commercial use.
Honeywell 32NT9121 Commercial Toggle Switch Specifications:
- Switch Type: Toggle Switch
- Series: MICRO SWITCH™ NT Series
- Sealing: IP67/IP68, NEMA 3, 3R, 4, 13
- Operating Temperature: -40 °C to 71 °C [-40 °F to 160 °F]
- Actuators: Standard, locking, special design, tab
- Action: 2- or 3-position, momentary and maintained
- Mounting Bushing: 15/32 in (0.47 in) Ø
- Circuitry: SPST, SPDT, DPST, DPDT, 4PST, 4PDT
- Terminations: Screw, solder, quick connect
- Contacts: Silver alloy, gold-plated
- Amp Rating: Up to 20 A (resistive)
- Approvals: UL, CSA, CE
- Dimensions: 26.7 mm H x 33.5 mm W x 22.6 mm D
- Electrical Ratings: Refer to Table 2 for UL and CSA ratings
- Terminal Circuit Identification: Keyside is on #3 terminal side
Buy the 32NT91-21 HONEYWELL Commercial Toggle Switch | myMectronic
Purchase the Honeywell 32NT91-21 Commercial-Grade Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 32NT9121?
You can click on the BUY or RFQ button to purchase 32NT9121 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 32NT9121?
You can download the 32NT9121 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 32NT9121?
Honeywell
