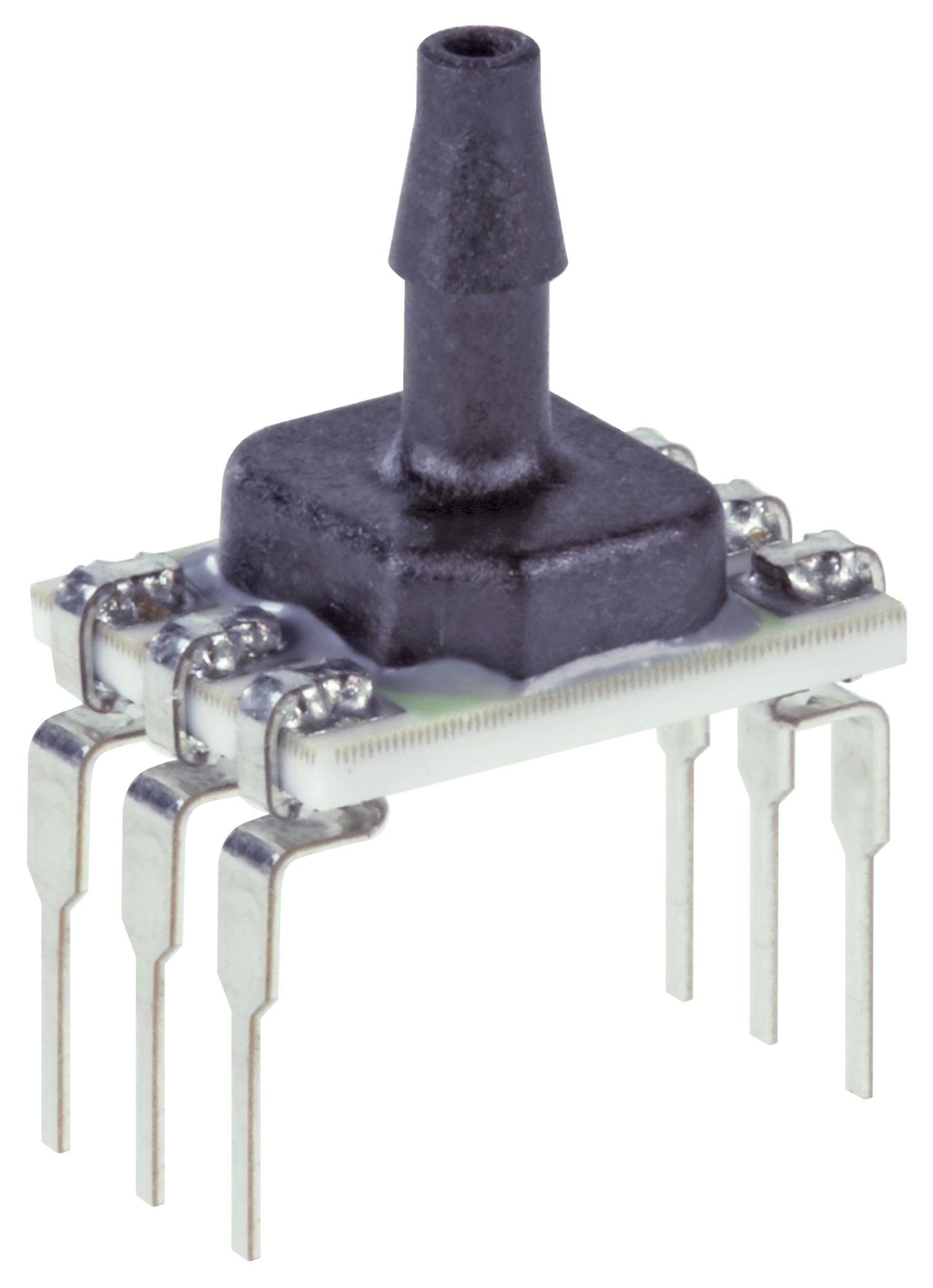

Honeywell ABPDANV150PGSA3 Board Mount Pressure Sensor
The ABP Series are compact, high-accuracy board mount pressure sensors designed for reliable industrial and medical applications. Featuring digital or analog outputs, they support liquid media and dry gases, with calibration and compensation for temperature, non-linearity, and hysteresis. These sensors operate over a wide supply voltage, consume low power, and provide real-time pressure readings with total error band of ±1.5% of full-scale span. Options include internal diagnostics, sleep mode, and temperature output, making them versatile for IoT, process control, and healthcare equipment.
Honeywell ABPDANV150PGSA3 Board Mount Pressure Sensor Specifications:
- Measurement Range: 60 mbar to 10 bar (6 kPa to 1 MPa, 1 psi to 150 psi)
- Output Types: Ratiometric analog, I2C, SPI (12-bit digital)
- Supply Voltage: 3.3Vdc or 5Vdc (factory selected)
- Total Error Band: ±1.5% of FSS
- Industry-leading stability: 0.25 %FSS
- Operating Temperature Range: -40°C to +85°C
- Compensated Temperature Range: 0°C to +50°C
- Power Consumption: 2 µA in sleep mode
- Sensor Size: as small as 8 mm x 7 mm
- Pressure Port Options: barbed, radially threaded, or no port
- Liquid Media Compatibility: Water, saline, non-corrosive liquids
- Dry Gas Compatibility: Dry, non-corrosive gases
- Certifications: UL, ROHS, REACH
Buy the Honeywell ABP150PG – Reliable Pressure Sensor for Industrial Applications
Order the Honeywell ABP150PG pressure sensor online today to ensure precise, dependable pressure measurement. Its compact size, low power consumption, and versatile output options make it ideal for industrial, medical, and IoT applications. With integrated diagnostics, it guarantees accurate readings across a wide temperature range. Enhance your system’s performance and simplify integration by purchasing this high-precision, cost-effective sensor now — the trusted choice for reliable pressure sensing in demanding environments.
Buy Honeywell ABP150PG now and experience unmatched reliability and performance in your pressure sensing applications.
Frequently Asked Questions
Where can I buy Honeywell ABPDANV150PGSA3?
You can click on the BUY or RFQ button to purchase ABPDANV150PGSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDANV150PGSA3?
You can download the ABPDANV150PGSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDANV150PGSA3?
Honeywell
