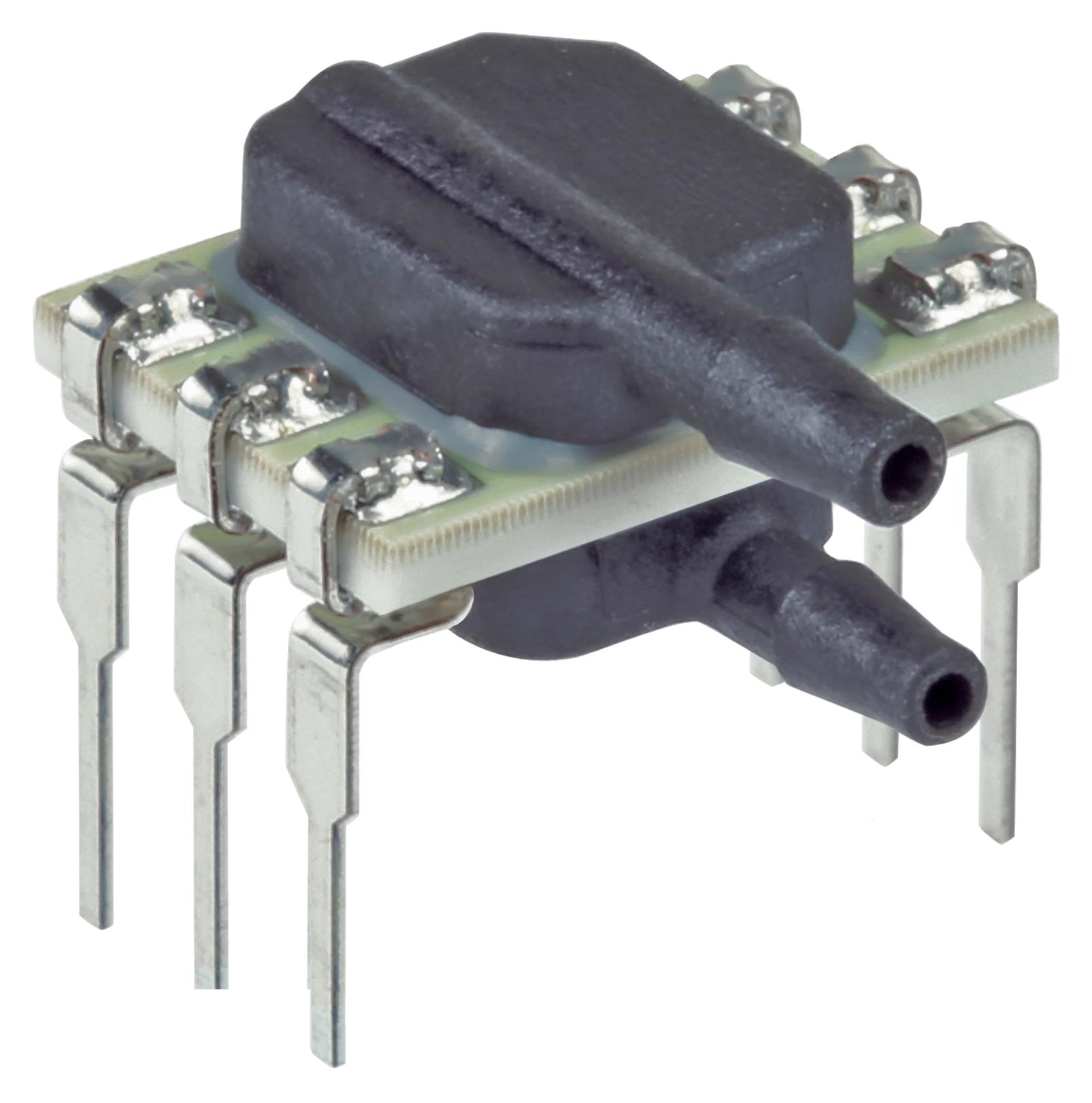

Honeywell ABPDRRV001PDAA5 Pressure Sensor
The ABP series basic amplified pressure sensors are piezoresistive silicon devices providing a ratiometric output for measuring pressure across specified full-scale pressure and temperature ranges. Calibrated and temperature compensated with onboard ASIC, they ensure high accuracy, stability, and reliability. Capable of measuring gauge and differential pressures, these compact sensors operate over a temperature range of 0°C to 50°C and are suitable for medical, industrial, and commercial applications. Proprietary Honeywell technology, long-term stability of ±0.25%, and a total error band of ±1.5% FSS make them versatile and precise for demanding sensing environments.
Honeywell ABPDRRV001PDAA5 Pressure Sensor Specifications:
- Measurement Type: Gauge and differential pressure
- Full Scale Pressure Range: 60 mbar to 10 bar (6 kPa to 1 MPa, 1 psi to 150 psi)
- Output: Ratiometric analog or I2C/SPI-compatible 12-bit digital
- Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
- Total Error Band: ±1.5% FSS
- Accuracy: ±0.25% FSS BFSL
- Long-term Stability: ±0.25% FSS over 1000 hours at 25°C
- Power Supply: 3.3 Vdc or 5 Vdc
- Size: As small as 8 mm x 7 mm
- Ports: Dual radial barbed ports on the same side, silicone gel coating for diagnostics and wet media compatibility
- Burst Pressure Ratings: High burst pressures suitable for demanding applications
- Standards: ISO 9001 compliant, IPC/JEDEC J-STD-020D.1 moisture sensitivity level 1
- Response Frequency: Analog updated at ~1 kHz, digital at ~2 kHz
- Technology: Proprietary Honeywell piezoresistive silicon with on-board ASIC
- Package: DIP, SMT, or leadless SMT options available
- Material: High-temperature polyamide, alumina ceramic, silicone, gold, glass, epoxy
- Environmental Resistance: Vibration, shock, and humidity rated for industrial environments
Buy the Buy Honeywell ABP Series Part Number ABPDRRV001PDAA5 Online
Purchase the Honeywell ABP Series pressure sensor online today for dependable, high-accuracy pressure measurement across medical, industrial, and commercial applications. Its compact size and proprietary Honeywell technology ensure reliable performance with long-term stability and minimal errors. Designed to measure gauge and differential pressures, it features a broad working temperature range, high burst pressure ratings, and compatibility with wet media thanks to silicone gel coating. Ideal for demanding sensing environments requiring precision, durability, and flexible configuration options, this sensor provides rapid calibrated readings and comprehensive diagnostics. Order now for optimized system integration and enhanced sensing performance.
Get Honeywell ABPDRRV001PDAA5 today—built for precision, long-lasting durability, and versatile pressure measurement in compact packages.
Frequently Asked Questions
Where can I buy Honeywell ABPDRRV001PDAA5?
You can click on the BUY or RFQ button to purchase ABPDRRV001PDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDRRV001PDAA5?
You can download the ABPDRRV001PDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDRRV001PDAA5?
Honeywell
