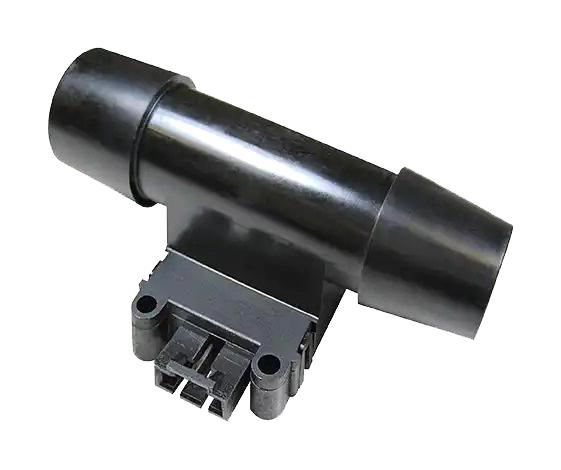

Honeywell AWM730B5 Compensated Amplified Airflow Sensor
The Honeywell AWM700 Series, specifically the AWM730B5, is a compensated/amplified airflow sensor offering precise flow measurement in a compact package. Designed primarily for medical ventilation markets, it excels in applications requiring high performance and accuracy, such as medical and analytical instrumentation. The sensor measures airflow up to 300 SLPM while maintaining a low pressure drop, and its fast response time (6ms) ensures quick capture of flow events. It operates on a 9.0-16.0 Vdc supply and consumes only 60mW of power. The AWM730B5 incorporates amplification and temperature compensation, reducing the need for recalibration and ensuring stable operation across a wide temperature range. It utilizes a snap-in AMP-compatible connector for reliable connection and is suitable for laminar flow applications, with options for laminarizing elements to minimize turbulence.
Honeywell AWM730B5 Compensated Amplified Airflow Sensor Specifications:
- Flow range: ±300 SLPM
- Excitation voltage: 5 Vdc ±0.01 Vdc
- Power supply: 9.0 Vdc min./16.0 Vdc max.
- Power consumption: 60 mW
- Output loading (sinking): 10 mA typ.
- Output loading (sourcing): 20 mA typ.
- Calibration gas: air
- Null voltage shift (25°C to -25°C): ±0.025 Vdc typ.
- Null voltage shift (25°C to 85°C): ±0.025 Vdc typ.
- Null voltage shift (25°C to 5°C): ±0.02 Vdc typ.
- Null voltage shift (25°C to 60°C): ±0.02 Vdc typ.
- Full scale output shift (25°C to 10°C): -2.0 Vdc %reading typ.
- Full scale output shift (25°C to 40°C): +2.0 Vdc %reading typ.
- Full scale output shift (25°C to 5°C): ±2.5 %reading typ.
- Full scale output shift (25°C to 60°C): ±2.5 %reading typ.
- Ratiometricity error: ±0.30 %reading typ.
- Repeatability and hysteresis: ±0.50 %reading max.
- Response time: 6 ms typ.
- Warmup time: 5 s
- Pressure drop at full scale: 3,0 mbar | 300 Pa | 1.2 inH20 typ.
- Overpressure: 1034 mbar | 103 kPa | 15 psi max.
- Operating temperature range: 5 °C to 60 °C [41 °F to 140 °F]
- Storage temperature range: -40 °C to 90 °C [-40 °F to 194 °F]
- Connector: snap-in AMP 103956-3
