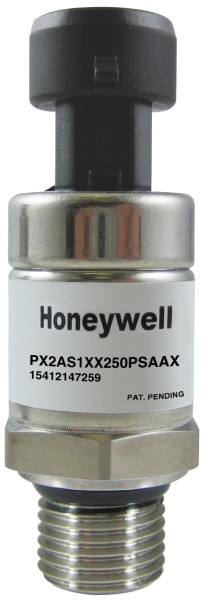

Honeywell PX2AS1XX250PSAAX Heavy Duty Pressure Transducer
Honeywell’s PX2 Series Heavy Duty Pressure Transducers are configurable pressure sensors designed for industrial applications like HVAC/R systems and air compressor systems. They employ piezoresistive sensing technology with ASIC signal conditioning in a stainless steel housing, ensuring durability and accuracy. The transducers are calibrated and compensated for offset, sensitivity, temperature effects, and non-linearity. Available in various pressure ranges and port types, the PX2 Series offers robust performance and media compatibility, including common refrigerants and hydraulic fluids.
Honeywell PX2AS1XX250PSAAX Heavy Duty Pressure Transducer Specifications:
- pressure_range: 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
- pressure_reference: Absolute, sealed gage or vented gage
- pressure_port_types: 7/16-20 UNF 1/4 in 45° Flare Female Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE J513), 7/16-20 UNF 37° Flare Male (SAE J514), G1/4 (ISO 1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF (SAE J1926-3), or 7/16-20 UNF (SAE J1926-3)
- electrical_connector_types: Metri-Pack 150 (UL 94 HB or V-0 options), Micro M12, DIN, Deutsch, or cable harness (1 m, 2 m, 3 m, or 5 m)
- total_error_band: +/-2.0 %
- operating_temperature_range: -40°C to 125°C [-40°F to 257°F]
- response_time: <2 ms
- life: Minimum of 10 million cycles to operating pressure
- mechanical_shock_rating: 100 G per MIL-STD-202F, Method 213B, Cond. F
- vibration_rating: 20 G sweep, 10 Hz to 2000 Hz
- ingress_protection: Up to IP69K
- radiated_immunity_protection: Up to 100 V/m (ISO 11452-2)
- flame_retardant_options: UL 94 HB standard on all electrical terminations; UL 94 V-0 available upon request
Buy the PX2AS1XX250PSAAX HONEYWELL Heavy Duty Pressure Transducer | myMectronic
Purchase the Honeywell PX2AS1XX250PSAAX Heavy Duty Pressure Transducer securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell PX2AS1XX250PSAAX?
You can click on the BUY or RFQ button to purchase PX2AS1XX250PSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX2AS1XX250PSAAX?
You can download the PX2AS1XX250PSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX2AS1XX250PSAAX?
Honeywell
