Honeywell BAF12RN2LH Limit Switch

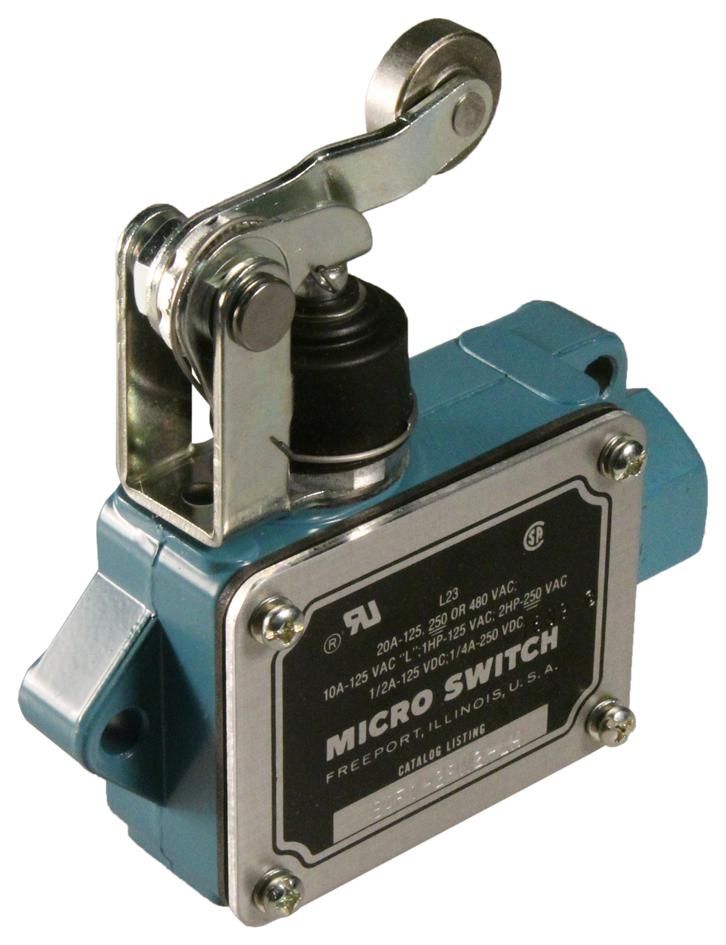

The BAF1-2RN2-LH is a medium-duty, SPDT limit switch with a top roller arm actuator housed in a die-cast aluminum enclosure. It features a sealed elastomer boot for actuator and switch protection from contaminants, and a gasket seal between the cover plate and enclosure. The switch allows easy wiring or replacement with a removable cover plate. Marked for right or left actuator position, it has a maximum pre-travel of 5.56 mm, operating from -32°C to 71°C, suitable for industrial and agricultural applications. Durable and reliable for demanding environments.
Honeywell BAF12RN2LH Limit Switch Specifications:
- Housing Material: Die-cast aluminum
- Contact Configuration: SPDT (Single Pole Double Throw)
- Maximum Pre-Travel: 5.56 mm
- Temperature Range: -32°C to 71°C
- Sealed Elastomer Boot for Contaminant Protection
- Gasket Seal Between Cover Plate and Enclosure
- Mounting: Three-hole design
- Actuator Position: Marked right or left when viewed from front
- Operational Environment: Industrial and agricultural applications
- Maximum Switching Voltage: 250 VAC
- Maximum Switching Current: 10 A
- Ingress Protection: NEMA 1, 3*, 4*, 13*
Buy the Honeywell BAF1-2RN2-LH – Reliable Limit Switch for Industrial Applications
Purchase the Honeywell BAF1-2RN2-LH limit switch online today for dependable operation in demanding industrial and agricultural environments. This SPDT switch, housed in a rugged die-cast aluminum enclosure, features a top roller actuator with a sealed elastomer boot and gasket seal, providing excellent protection from contaminants. Its easy wiring access with a removable cover plate simplifies installation and maintenance. Designed for versatility, it operates reliably within a temperature range of -32°C to 71°C, supporting applications where durability and performance are critical. Secure your supply chain and improve project efficiency by ordering now.
Order your Honeywell BAF1-2RN2-LH limit switch today and ensure reliable performance for your industrial and agricultural projects with this durable, easy-to-install device.
